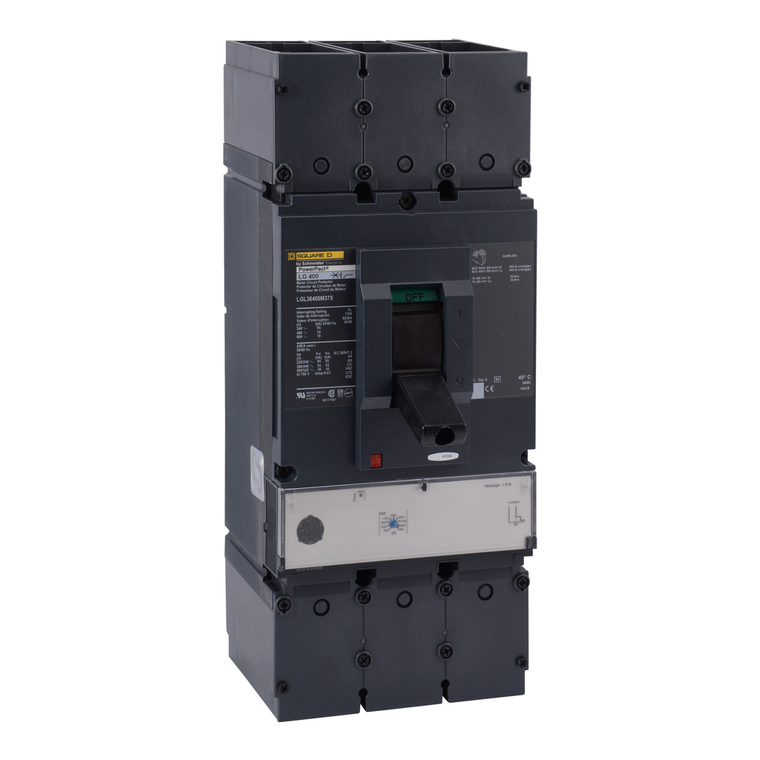

Schneider Electric LGL36600M37X Molded Case Circuit Breaker 600V 600A

Schneider Electric LGL36600M37X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LGL36600M37X
|
UPC:
785901564485
$6,790.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT L-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. PowerPacT L-Frame motor circuit protectors are available with electronic trip units. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the equivalent PowerPacT L circuit breaker. PowerPacT L protectors are available in 3 pole unit mount, I-Line, and plug in constructions. This PowerPacT L, 600A, 3 pole, MCP has an interrupting rating of 18kA at 600VAC. This protector provides MicroLogic with a 1.3M trip unit. This unit has lugs on both the line and load sides. This motor circuit protector has a continuous current rating of 80%. PowerPacT L motor circuit protectors comply to UL, CSA, and IEC standards.
Additional Information
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Trip Unit Technology:
electronic, standard, MicroLogic 1.3 M, I
Product Certifications:
UL || CSA || NOM
Warranty:
18 months
Net Weight:
6.2 kg
Height:
340 mm
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Local Signalling:
ready 1 LED green) || switched off (OFF) 1 trip indicator green)
Ambient Air Temperature For Storage:
-50-85 °C
Utilisation Category:
category A
Poles Description:
3P
Product Or Component Type:
Motor Circuit Protector
Ip Degree Of Protection:
front cover IP40
Width:
140 mm
Electrical Connection:
lugs, line || lugs, load
Environmental Disclosure:
ENVPEP2206029EN
Mounting Support:
lug
Line Rated Current:
600-600 A
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Pollution Degree:
3 IEC 60947-1
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Terminal Identifier:
AL600LS52K3
Mounting Mode:
unit mount lug)
Pvc Free:
Yes
Range:
PowerPact
Trip Unit Name:
MicroLogic 1.3 M
Circuit Breaker Application:
HACR rated
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Communication Interface:
Modbus || Ethernet
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Depth:
110 mm
Network Frequency:
50/60 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Name:
PowerPact L
Magnetic Tripping Current:
500-1200 A
Color:
Black
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Suitability For Isolation:
yes IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Protection Technology:
current limiter
Control Type:
toggle
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Circularity Profile:
ENVEOLI2206029EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Short Name:
L-Frame
Device Application:
distribution
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Wire Stripping Length:
31 mm || 61 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity Code:
G
