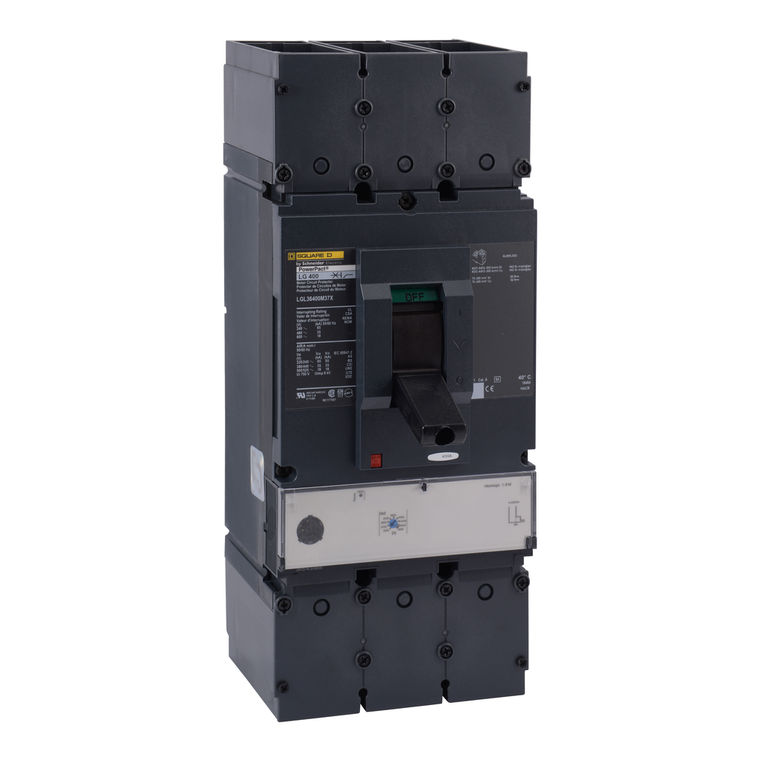

Schneider Electric LGL37035D29 Molded Case Circuit Breaker 500Vdc 600A

Schneider Electric LGL37035D29 Molded Case Circuit Breaker 500Vdc 600A

Schneider Electric
SKU:
LGL37035D29
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$6,950.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 350A, 3 pole, circuit breaker has an interrupting rating of 20kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mounting Support:
lug
Warranty:
18 months
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
unit mount lug)
Magnetic Tripping Current:
875-1750 A
Product Or Component Type:
circuit breaker
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Sustainable Offer Status:
Green Premium product
Range:
PowerPact
Ambient Air Temperature For Operation:
-2-70 °C
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Width:
140 mm
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
Suitability For Isolation:
yes IEC 60947-2
Rohs Exemption Information:
Yes
Device Short Name:
L-Frame
Communication Interface:
Modbus || Ethernet
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Device Application:
distribution
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Control Type:
toggle
Environmental Disclosure:
ENVPEP1406010EN
Line Rated Current:
350-350 A
Wire Stripping Length:
31 mm || 61 mm
Product Certifications:
UL || CSA || NOM
Local Signalling:
switched off (OFF) 1 trip indicator green)
Circularity Profile:
ENVEOLI1406010EN
Ambient Air Temperature For Storage:
-50-85 °C
Terminal Identifier:
AL600LS52K3
Color:
Black
Trip Unit Technology:
thermal-magnetic
Eu Rohs Directive:
Compliant with Exemptions
Net Weight:
6.2 kg
Circuit Breaker Application:
HACR rated
Network Frequency:
50/60 Hz
Utilisation Category:
category A
Pollution Degree:
3 IEC 60947-1
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protection:
front cover IP40
Depth:
110 mm
Poles Description:
3P
Breaking Capacity Code:
G
Mercury Free:
Yes
Pvc Free:
Yes
Product Name:
PowerPact L
Height:
340 mm
