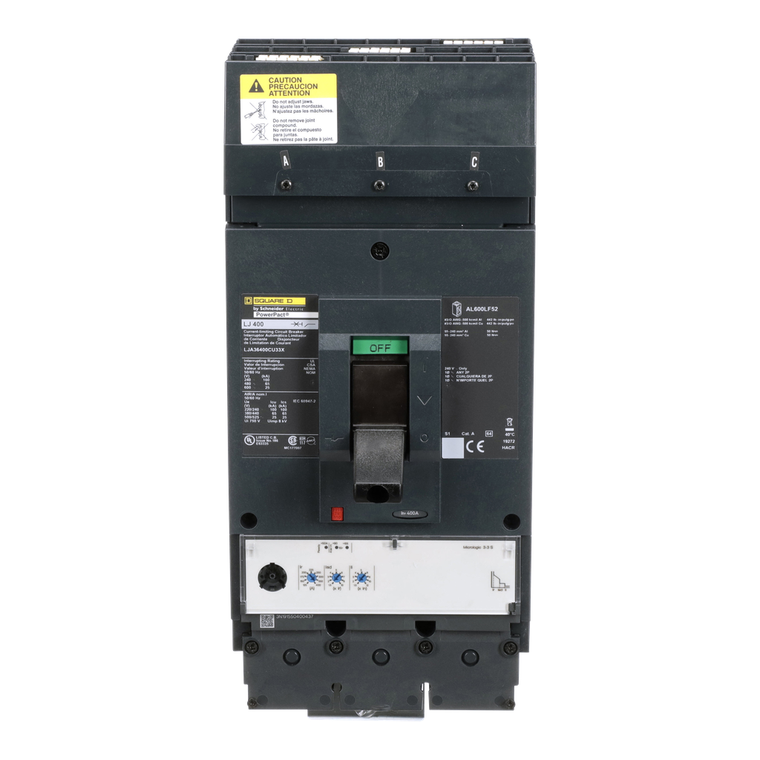

Schneider Electric LJA36400CU33X Molded Case Circuit Breaker 600V 400A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LJA36400CU33X Molded Case Circuit Breaker 600V 400A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LJA36400CU33X

UPC:

785901093466

MPN:

Condition:

New

Continuous Current Rating:

1

Trip Unit Technology:

electronic, standard, MicroLogic 3.3 S, LSI

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Device Short Name:

L-Frame

Trip Unit Name:

MicroLogic 3.3 S

Tightening Torque:

50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)

Suitability For Isolation:

yes IEC 60947-2

Awg Gauge:

2 x AWG 2/0...500 kcmil aluminium/copper

Terminal Identifier:

AL600LS52K3

Height:

340 mm

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Utilisation Category:

category A

Circularity Profile:

ENVEOLI2206029EN

Mounting Support:

bracket

Ip Degree Of Protection:

front cover IP40

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Mounting Mode:

I-Line bracket)

Communication Interface:

Modbus || Ethernet

Warranty:

18 months

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Width:

140 mm

Wire Stripping Length:

31 mm || 61 mm

Control Type:

toggle

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Product Certifications:

UL || CSA || NOM

Line Rated Current:

400-400 A

Ambient Air Temperature For Operation:

-2-70 °C

Range:

PowerPact

Product Or Component Type:

circuit breaker

Ambient Air Temperature For Storage:

-50-85 °C

Rohs Exemption Information:

Yes

Electrical Connection:

I-Line connection, line || lugs, load

Depth:

110 mm

Environmental Disclosure:

ENVPEP2206029EN

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Local Signalling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Device Application:

distribution

Product Name:

PowerPact L

Eu Rohs Directive:

Compliant with Exemptions

Poles Description:

3P

Breaking Capacity Code:

J

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Pollution Degree:

3 IEC 60947-1

Breaking Capacity:

100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489

Sustainable Offer Status:

Green Premium product

Color:

Black

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circuit Breaker Application:

HACR rated

Phase Connection:

ABC

Mounting Height:

6 in

Network Frequency:

50/60 Hz

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Mercury Free:

Yes

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Net Weight:

6.2 kg

Pvc Free:

Yes
