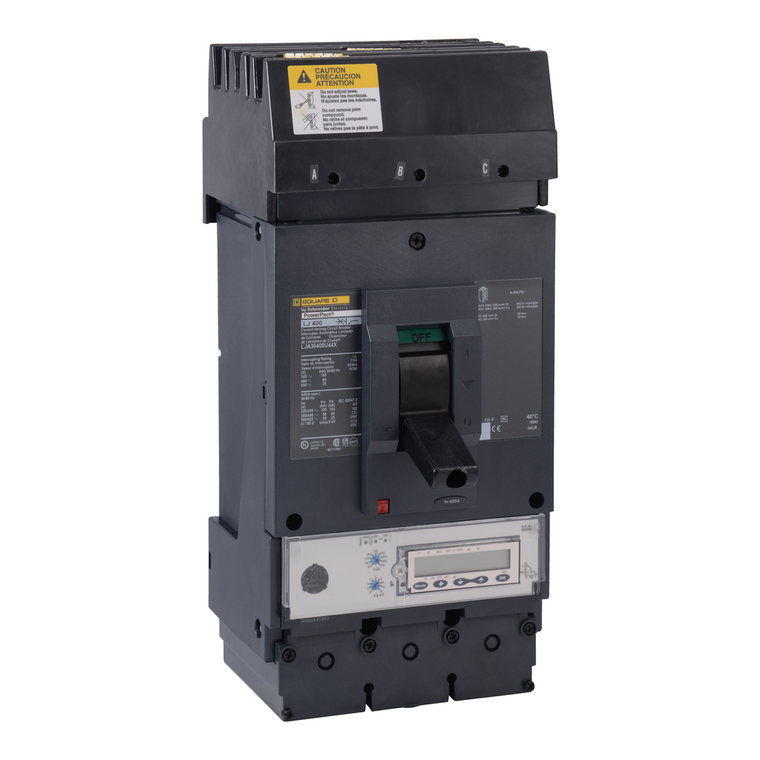

Schneider Electric LJA36400U44X Molded Case Circuit Breaker 600V 400A
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Ammeter with a 6.3A trip unit and an LSIG function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Electrical Connection:
- I-Line connection, line || lugs, load
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Protection Technology:
- current limiter
- Ambient Air Temperature For Operation:
- -2-70 °C
- Tightening Torque:
- 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Suitability For Isolation:
- yes IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Circuit Breaker Application:
- HACR rated
- Network Frequency:
- 50/60 Hz
- Poles Description:
- 3P
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Mounting Mode:
- I-Line bracket)
- Pvc Free:
- Yes
- Width:
- 140 mm
- Net Weight:
- 6.2 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Circularity Profile:
- ENVEOLI2206029EN
- Control Type:
- toggle
- Device Short Name:
- L-Frame
- Mercury Free:
- Yes
- Phase Connection:
- ABC
- Wire Stripping Length:
- 31 mm
- Communication Interface:
- Modbus || Ethernet
- Eu Rohs Directive:
- Compliant with Exemptions
- Utilisation Category:
- category A
- Product Or Component Type:
- circuit breaker
- Ambient Air Temperature For Storage:
- -50-85 °C
- Mounting Support:
- bracket
- Ip Degree Of Protection:
- front cover IP40
- Line Rated Current:
- 400-400 A
- Range:
- PowerPact
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Device Application:
- distribution
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Height:
- 340 mm
- Terminal Identifier:
- AL600LF52K3
- Product Name:
- PowerPact L
- Breaking Capacity Code:
- J
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Product Certifications:
- UL || CSA || NOM
- Rohs Exemption Information:
- Yes
- Color:
- Black
- Mounting Height:
- 6 in
- Depth:
- 110 mm
- Awg Gauge:
- AWG 3/0...500 kcmil aluminium/copper
- Trip Unit Technology:
- electronic, ammeter, MicroLogic 6.3 A, LSIG
- Trip Unit Name:
- MicroLogic 6.3 A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Continuous Current Rating:
- 0.8
- Environmental Disclosure:
- ENVPEP2206029EN
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
