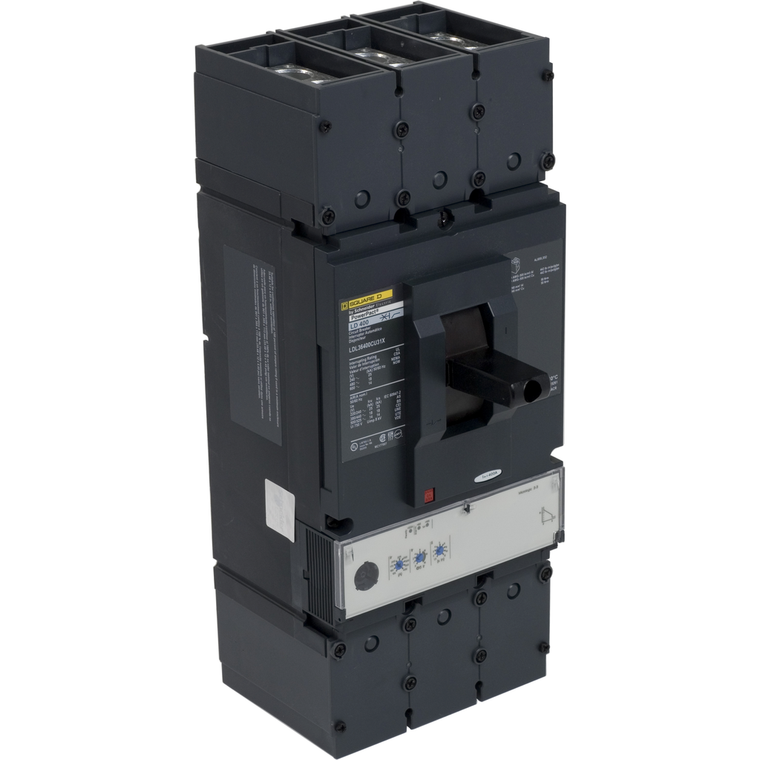

Schneider Electric LLL36400CU31X Molded Case Circuit Breaker 600V 400A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LLL36400CU31X Molded Case Circuit Breaker 600V 400A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LLL36400CU31X

UPC:

7.85901E+11

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-2-70 °C

Continuous Current Rating:

1

Width:

140 mm

Trip Unit Technology:

electronic, standard, MicroLogic 3.3, LI

Depth:

110 mm

Device Application:

distribution

Pollution Degree:

3 IEC 60947-1

Eu Rohs Directive:

Compliant with Exemptions

Height:

340 mm

[Ics] Rated Service Breaking Capacity:

125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Mounting Support:

lug

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Mounting Mode:

unit mount lug)

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Suitability For Isolation:

yes IEC 60947-2

Awg Gauge:

2 x AWG 2/0...500 kcmil aluminium/copper

Network Frequency:

50/60 Hz

Product Certifications:

UL || CSA || NOM

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Tightening Torque:

50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)

Product Or Component Type:

circuit breaker

Line Rated Current:

400-400 A

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Mercury Free:

Yes

Control Type:

toggle

Range:

PowerPact

Net Weight:

6.2 kg

Electrical Connection:

lugs, line || lugs, load

Poles Description:

3P

Ip Degree Of Protection:

front cover IP40

Wire Stripping Length:

31 mm || 61 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Sustainable Offer Status:

Green Premium product

Color:

Black

Ambient Air Temperature For Storage:

-50-85 °C

Rohs Exemption Information:

Yes

Terminal Identifier:

AL600LS52K3

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Communication Interface:

Modbus || Ethernet

Protection Technology:

current limiter

Environmental Disclosure:

ENVPEP2206029EN

Breaking Capacity Code:

L

Pvc Free:

Yes

Utilisation Category:

category A

Product Name:

PowerPact L

Local Signalling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Breaking Capacity:

125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Warranty:

18 months

Circuit Breaker Application:

HACR rated

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Trip Unit Name:

MicroLogic 3.3

Device Short Name:

L-Frame

Circularity Profile:

ENVEOLI2206029EN

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold
