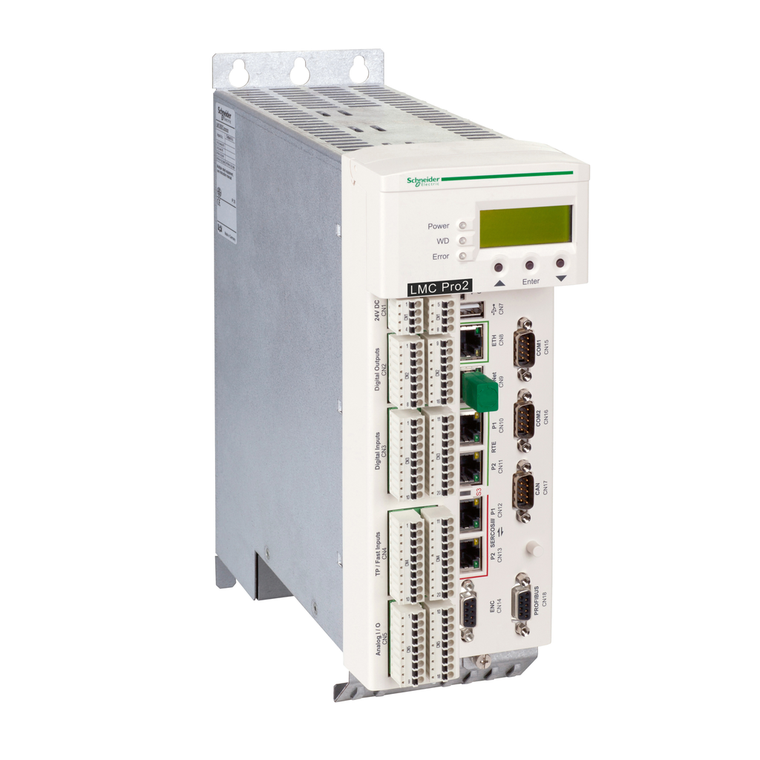

Schneider Electric LMC902CCG10000 Cpu (130 Axis), 2Xom-Ne+Usv
SKU:
LMC902CCG10000
UPC:
3606481814173
MPN:
Condition:
New
Availability:
Schneider orders under $1250 will incur a $60 processing fee at checkout
Circularity Profile:
ENVEOLI1411004EN
Analogue Input Type:
voltage analog input - 10...10 V || current analog input - 20...20 mA
Discrete Input Voltage:
20...33 V || 0...6 V
China Rohs Regulation:
X
Anti Bounce Filtering:
1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input
Sustainable Offer Status:
Green Premium product
Width:
100 mm
Pollution Degree:
2 IEC 61131-2
Depth:
243 mm
Supply:
power supply 24 VDC, <1 A
Net Weight:
3.5 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ip Degree Of Protection:
IP20EN/IEC 60529
Maximum Leakage Current:
0.4 mA
Product Compatibility:
motion controller
Discrete Input Current:
5 mA digital input || 5 mA interrupt input || 5 mA touch probe input
Relative Humidity:
5-95 % without condensation
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Input Impedance:
100000 Ohm analog input || 500 Ohm
Power Consumption In W:
36 W
Discrete Output Number:
16 digital output || 2 analog output
Product Or Component Type:
motion controller
Number Of Axis:
130
[Us] Rated Supply Voltage:
24 V DC
Discrete Input Voltage Type:
DC
Integrated Connection Type:
2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link
Mercury Free:
Yes
Programming Language:
ST (structured text) || IL (instruction list) || LD (ladder) || CFC (continuous function chart) || FBD (function block diagram) || SFC (sequential function chart)
Height:
310 mm
Analogue Input Number:
2
Range Of Product:
PacDrive 3
Discrete Input Number:
20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1
Analogue Input Resolution:
12 bits
Shock Resistance:
150 m/s² 6 ms operation)EN/IEC 60721-3-3
Environmental Disclosure:
ENVPEP1411004EN
Rohs Exemption Information:
Yes
Maximum Number Of I/O Expansion Module:
2
Product Certifications:
cULus || CE || EAC || CSA
Vibration Resistance:
3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz
Ambient Air Temperature For Operation:
5-55 °C
Memory Type:
256 kB NVRAM || 1 GB RAM DDR3L
Discrete Output Current:
250 mA digital output
Standards:
CSA C22.2 No 14 || UL 508C || CSA C22.2 No 274 || EN/IEC 61131-2
