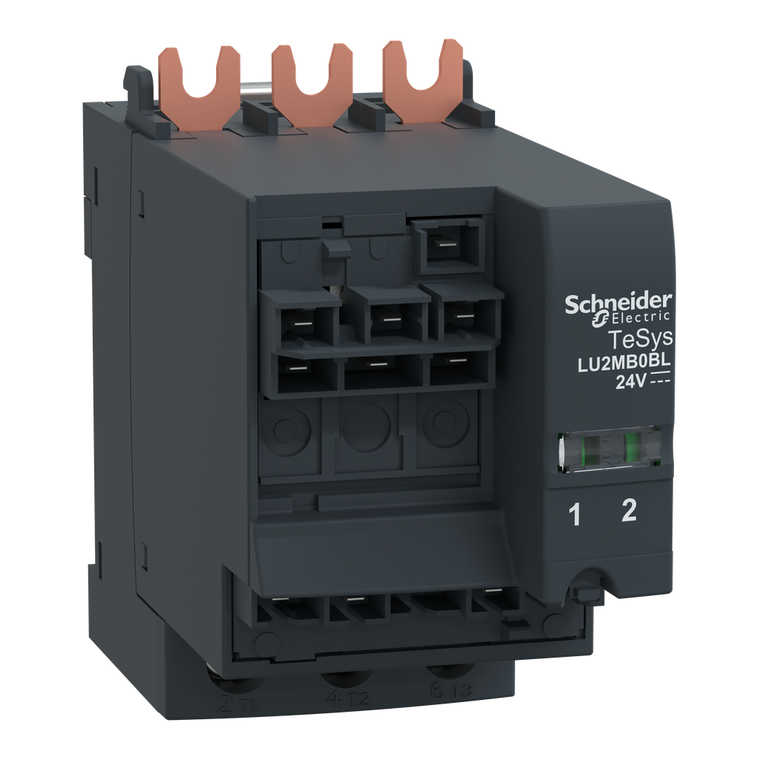

Schneider Electric LU2MB0BL Reverser Block 32A 24V Dc

Schneider Electric LU2MB0BL Reverser Block 32A 24V Dc

Schneider Electric
SKU:
LU2MB0BL
|
UPC:
3389110363777
$192.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
TeSys U reversing module for vertical mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*BL type. To be associated with an assembling connector LU9MR1C and a control terminal block LU9M1 to complete the vertical mounting. Green Premium compliant (RoHS/REACh).
Additional Information
Connections - Terminals:
control circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid || cont
Shock Resistance:
10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
California Proposition 65:
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Inrush Restraint Duration:
25 ms AC || 15 ms DC
Ip Degree Of Protection:
IP20 IEC 60947-1 front panel and wired terminals) || IP20 IEC 60947-1 other faces) || IP40 IEC 60947-1 front panel outside connection zone)
Vibration Resistance:
2 gn 5-300 Hz) power poles open IEC 60068-2-27 || 4 gn 5-300 Hz) power poles closed IEC 60068-2-27
Range:
TeSys
Fixing Mode:
plug-in
Device Short Name:
LU2MB
Protective Treatment:
TH IEC 60068
Standards:
EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier
Current Consumption:
120 mA 24 V DC I maximum while closing || 120 mA 24 V DC I rms sealed
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications:
CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine
Mercury Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Tightening Torque:
control circuit 0.8-1.2 N.m flat 5 mm || control circuit 0.8-1.2 N.m Philips No 2 5 mm || power circuit 1.9-2.5 N.m flat 6 mm || power circuit 1.9-2.5 N.m Philips No 2 6 mm
Device Mounting:
direct mounting
Depth:
105 mm
Compatibility Code:
LU2MB
Width:
45 mm
Immunity To Radioelectric Fields:
10 V IEC 61000-4-6
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Ambient Air Temperature For Storage:
-40-85 °C
Network Frequency:
40...60 Hz
Operating Time:
150 ms with change of direction || 75 ms without change of direction
[Uc] Control Circuit Voltage:
24 V DC
[Ui] Rated Insulation Voltage:
690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
[Uimp] Rated Impulse Withstand Voltage:
6 kVIEC 60947-6-2
[Ue] Rated Operational Voltage:
690 V AC power circuit
Device Application:
motor control
Ambient Air Temperature For Operation:
-25-60 °C with LUCM || -25-70 °C with LUCA, LUCB, LUCC, LUCD
Resistance To Fast Transients:
2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ie] Rated Operational Current:
38 A
Fire Resistance:
960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12
Height:
80 mm
Product Or Component Type:
reverser block
Net Weight:
0.4 kg
Warranty:
18 months
Operating Altitude:
6561.68 ft (2000 m)
Resistance To Radiated Fields:
10 V/m level 3 IEC 61000-4-3
Resistance To Electrostatic Discharge:
8 kV level 3, in open air IEC 61000-4-2 || 8 kV level 4, on contact IEC 61000-4-2
