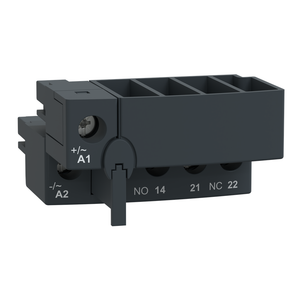

Schneider Electric LU9BN11C Prewired Coil Terminals
Schneider Electric
$57.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
TeSys U control terminal block to be inserted in power bases LUB120, LUB320, LUB380 for the centralized control of a starter controller. To be used for ON/OFF control of one direction motor applications with Modbus, Ethernet, AS-Interface remote control. It provides screw clamp terminals to connect the internal auxiliary contacts 1NO+1NC, and a pre-wired control cable to be connected to a communication module LUFC00, LULC031, LULC033, ASILUFC5, ASILUFC51 (to be ordered separately). It is powered by the associated communication module. Green Premium compliant (RoHS/REACh).
- Warranty:
- 18 months
- Net Weight:
- 0.045 kg
- Range:
- TeSys
- Product Compatibility:
- LUB..
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Bus Type:
- Modbus || AS-Interface || parallel
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Device Short Name:
- LU9B
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive:
- Compliant
- Circularity Profile:
- N/A
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP111254EN
- Product Or Component Type:
- pre-wired coil connection
- Brochure:
- View
- Datasheet:
- View
