Schneider Electric

Schneider Electric LUFP7 Profibus Gateway

(No reviews yet) Write a Review
SKU:
LUFP7
UPC:
3.38911E+12
Condition:
New
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Device Short Name:
LUF
Services:
command Profibus DP 122 configurable words || configuration and adjustment Fipio by gateway mini messaging facility || monitoring Profibus DP 122 configurable words
Range:
TeSys
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP111254EN
California Proposition 65:
WARNING: Cancer - www.P65Warnings.ca.gov
Ip Degree Of Protection:
IP20
Toxic Heavy Metal Free:
Yes
Bus Type:
Profibus DP || Modbus
Local Signalling:
LED front panel
Product Compatibility:
ATV31 || ATS48 || TeSys U starter-controllers
Maximum Number Of Connections:
<= 8 Modbus slaves
Rohs Exemption Information:
Yes
Electromagnetic Compatibility:
electromagnetic emission IEC 50081-2 || electromagnetic immunity IEC 61000-6-2
Ambient Air Temperature For Installation:
5-50 °C
Net Weight:
0.245 kg
Eu Rohs Directive:
Compliant
Circularity Profile:
N/A
Pollution Degree:
2 IEC 60664
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connector Type:
female SUB-D 9 field bus || RJ45 Modbus || RJ45 to a PC
Current Consumption:
100 mA typical || 280 mA maximum
Product Or Component Type:
communication gateway
Warranty:
18 months
[Us] Rated Supply Voltage:
24 V DC +/- 10 %
Catalog:
View
Datasheet:
View
$1,490.00

Description

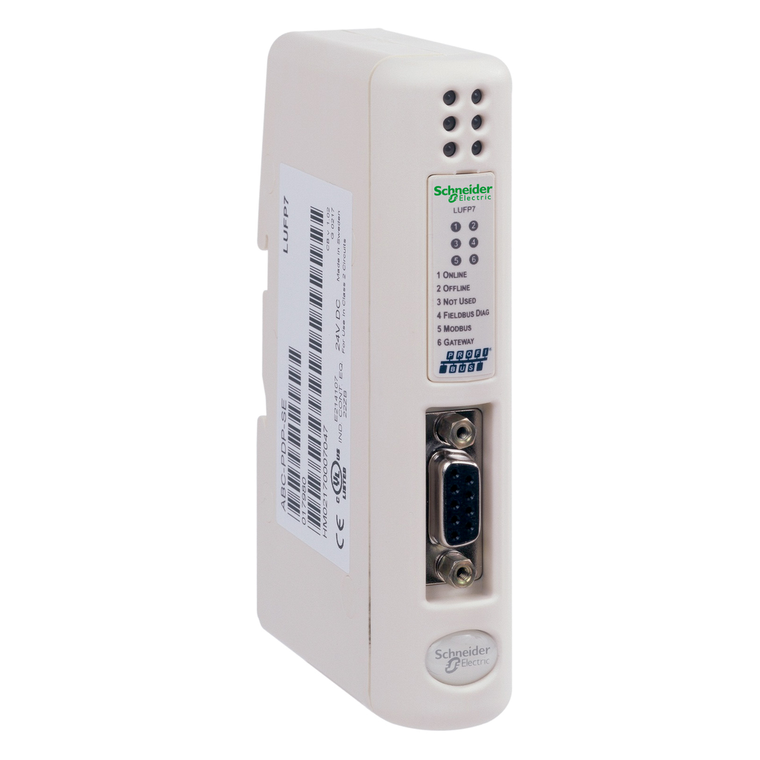

TeSys U communication gateway for interfacing groups of up to 8 x TeSys U starter controllers connected on the same Modbus serial link to a Profibus DP field bus. On front side, it provides the Profibus DP connector, and device and communication LED status. It provides on the bottom 2 x RJ45 connectors for Modbus serial link and PC link, a connector for a 24V DC external power supply. It can be used for interfacing ATS48 soft starters and ATV31 variable speed drives to Profibus DP. To be clipped on a 35mm DIN rail. Green Premium compliant (RoHS/REACh).
