Schneider Electric LUFV2 Motor Load Module 4-20Ma
Schneider Electric
$188.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LUFV2 Motor Load Module 4-20Ma
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

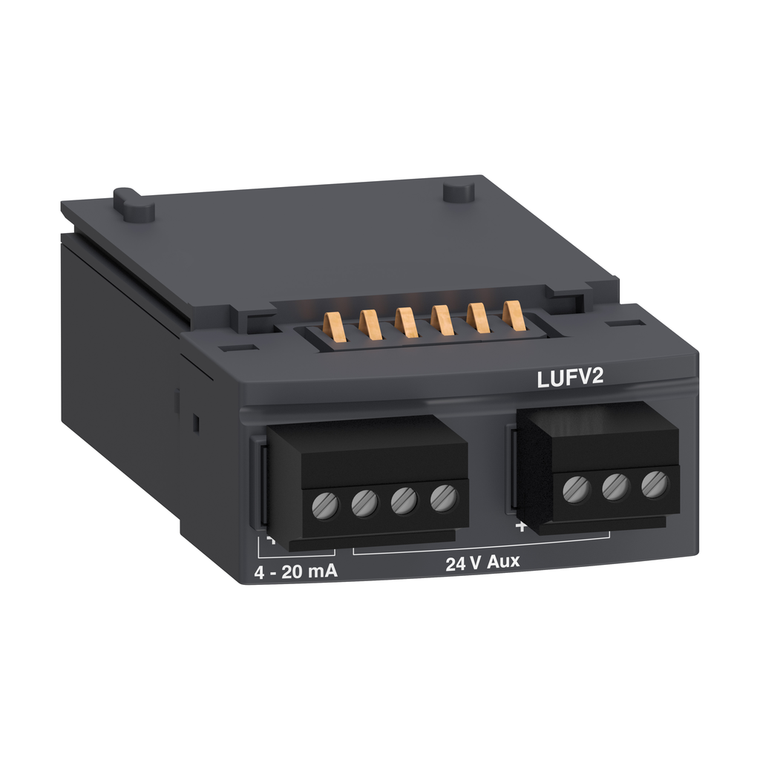

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Mercury Free:
- Yes
- Measurement Accuracy:
- +/- 10 % with multifunction control unit 1 % of Ir || +/- 6 % with advanced control unit
- Connection Pitch:
- 3.81 mm
- [Us] Rated Supply Voltage:
- 24 V DC
- Function Available:
- indication of motor load
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Type Of Output Signal:
- value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD || value of I average/Ir ratio within the range of 0 to 3 for LUCC
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.05 kg
- Device Short Name:
- LUF
- Reach Free Of Svhc:
- Yes
- Associated Cable Type:
- AWG 26...AWG 16
- Load Impedance Ohmic:
- 100 Ohm typical || <= 500 Ohm
- Tightening Torque:
- 0.2-0.25 N.m 2.5 mm flat
- Toxic Heavy Metal Free:
- Yes
- Mounting Mode:
- plug-in
- Range:
- TeSys
- Analogue Output Current:
- 4-20 mA
- China Rohs Regulation:
- X
- Product Or Component Type:
- function module
- Product Compatibility:
- LUCC || LUCM || LUCB || LUCD
- Connections - Terminals:
- screw clamp terminals 1 0.14-1 mm² flexible without cable end || screw clamp terminals 1 0.14-1 mm² rigid without cable end || screw clamp terminals 1 0.25-0.5 mm² flexible with cable end || screw clamp terminals 1 0.25-1 mm² flexible with cable
- Eu Rohs Directive:
- Compliant
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP111201EN
- Circularity Profile:
- ENVEOLI111214EN_V1
- Mounting Location:
- front side
- Datasheet:
- View
