Schneider Electric LV426803 Coil Mn Ac 110

Schneider Electric LV426803 Coil Mn Ac 110

Schneider Electric
SKU:
LV426803
|
UPC:
3606485412801
Availability:
Contact us to confirm availability and lead times.
$620.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

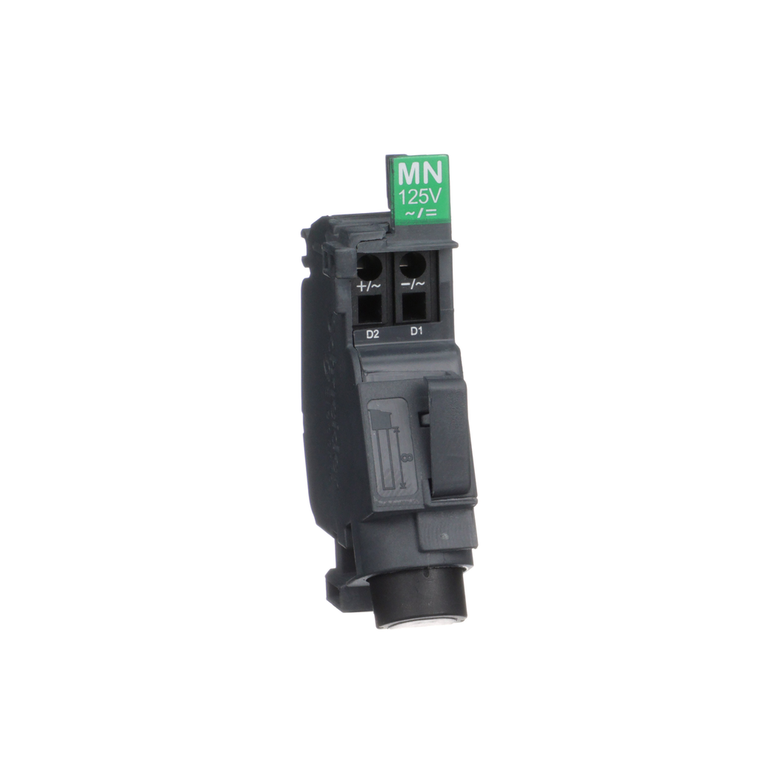

This standard MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 110/130 VAC 50/60 Hz or 125 VDC rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Additional Information
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Threshold Tripping Voltage:
0.35...0.7 x Un opening || 0.85 x Un closing
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Environmental Disclosure:
ENVPEP2311042EN
Device Short Name:
MN
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Auxiliary Connection Terminal:
spring
Range Compatibility:
ComPact ComPacT NSXm new generation || ComPact ComPact NSXm || PowerPact PowerPact B
Device Application:
control
Circularity Profile:
ENVEOLI2311042EN
[Uc] Control Circuit Voltage:
110...130 V AC 50/60 Hz || 125 V DC
Range:
ComPact
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Response Time:
< 50 ms
Voltage Release Type:
opening coil || undervoltage release
Control Type:
standard
Eu Rohs Directive:
Compliant with Exemptions
Range Of Product:
ComPacT NSXm new generation
Product Or Component Type:
voltage release
