Schneider Electric LV429243 4 Steel Connectors (1X 1.5-95Mm2)
Schneider Electric
$108.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LV429243 4 Steel Connectors (1X 1.5-95Mm2)

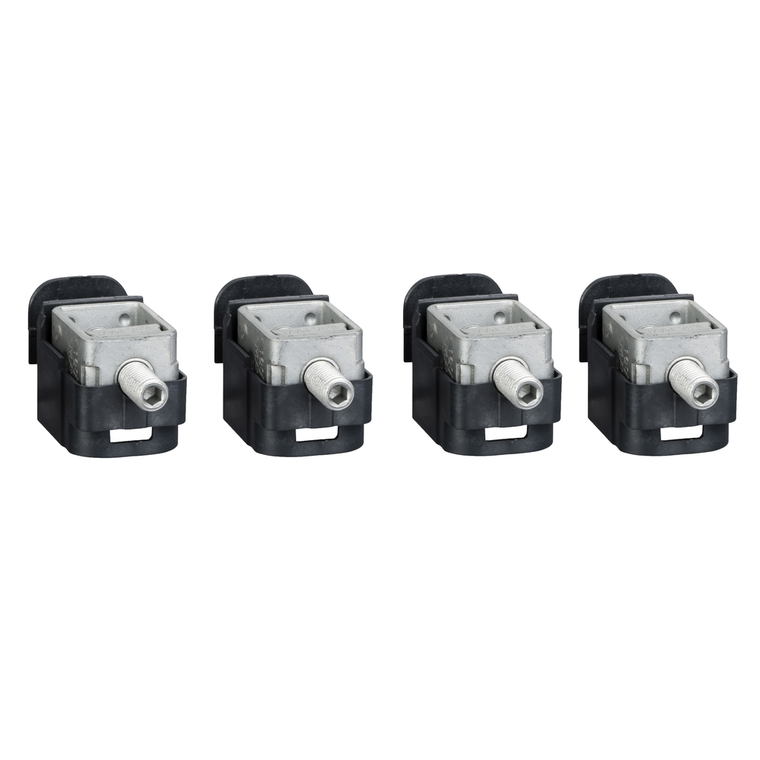

These accessories are steel bare cable connectors for Compact NSX 100/160 and EasyPact CVS 100/160. These connectors can receive 1 copper or aluminium cables from 1.5mm² to 95mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 160 A. They are sold by set of 4 parts.
- Eu Rohs Directive:
- Compliant
- Reach Free Of Svhc:
- Yes
- Poles Description:
- 4P
- Quantity Per Set:
- set of 4
- Product Or Component Type:
- bare cable connector
- Warranty:
- 18 months
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Connections - Terminals:
- screw terminal1 1.5-95 mm²
- Conductor Material:
- steel
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- ComPacT new generation ComPacT NSX100 new generation || ComPacT new generation ComPacT NSX160 new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact Compact NSX100 || ComPact Compact NSX160 || ComPact Compact NSX100 DC || C
- Line Rated Current:
- 160-160 A
- Accessory / Separate Part Category:
- connection accessory
- Mercury Free:
- Yes
- Datasheet:
- View
