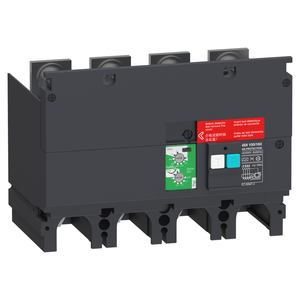

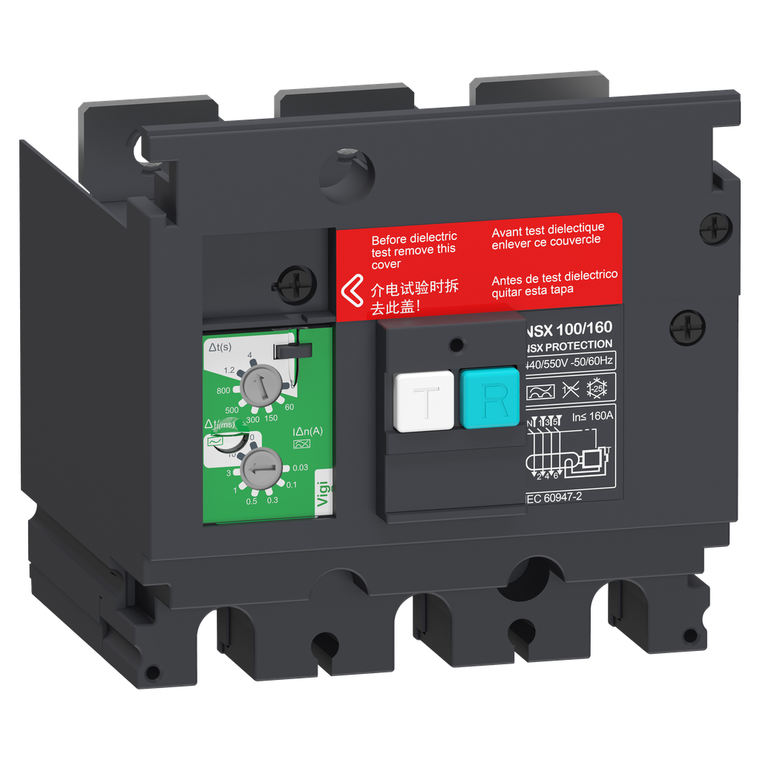

Schneider Electric LV429490 Vigi 440V-550V 3P For Nsx100/160

(No reviews yet) Write a Review

Write a Review

Schneider Electric LV429490 Vigi 440V-550V 3P For Nsx100/160

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LV429490

UPC:

3606481298560

MPN:

Condition:

New

Maximum Breaking Time:

800 ms

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ue] Rated Operational Voltage:

440...550 V AC 50/60 Hz IEC 60947-2

Device Application:

wiring

Range Compatibility:

ComPacT new generation ComPacT NSX100 new generation circuit breaker || ComPacT new generation ComPacT NSX160 new generation circuit breaker || ComPact ComPact NSX100 circuit breaker || ComPact ComPact NSX160 circuit breaker

Network Type:

AC

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Earth-Leakage Sensitivity:

0.03 A class A || 0.1 A class A || 0.3 A class A || 0.5 A class A || 1 A class A || 3 A class A || 10 A class AC || 30 A class AC

Circularity Profile:

ENVEOLI2309055EN

Residual Earth-Leakage Sensitity Adjustment Type:

adjustable

Sustainable Offer Status:

Green Premium product

Range Of Product:

ComPacT NSX100...250 new generation || ComPact NSX100...250

Eu Rohs Directive:

Compliant with Exemptions

Electrical Shock Protection Class:

class II

[Δt] Residual Earth-Leakage Time Delay Adjustment:

0-0 ms || 60-60 ms || 150-150 ms || 300-300 ms || 500-500 ms || 800-800 ms || 1.2-1.2 s || 4-4 s

Earth-Leakage Protection:

with

Environmental Disclosure:

ENVPEP2309055EN

Network Frequency:

50/60 Hz

Device Short Name:

VigiPacT

Overvoltage Category:

IV

Standards:

IEC 60947-2

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Earth-Leakage Protection Class:

class A || class AC

Product Or Component Type:

Vigi add-on

Mercury Free:

Yes

Residual Earth-Leakage Time Delay Adjustment Type:

adjustable

Line Rated Current:

100 A || 160 A

Poles Description:

3P

Datasheet:

View
