Schneider Electric M9D11616 Multi9 N40 Vigi C 16A 1Pn 30Ma Ac Rcbo

Schneider Electric M9D11616 Multi9 N40 Vigi C 16A 1Pn 30Ma Ac Rcbo

Schneider Electric
SKU:
M9D11616
|
UPC:
3606480578908
Availability:
Factory stock
$428.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

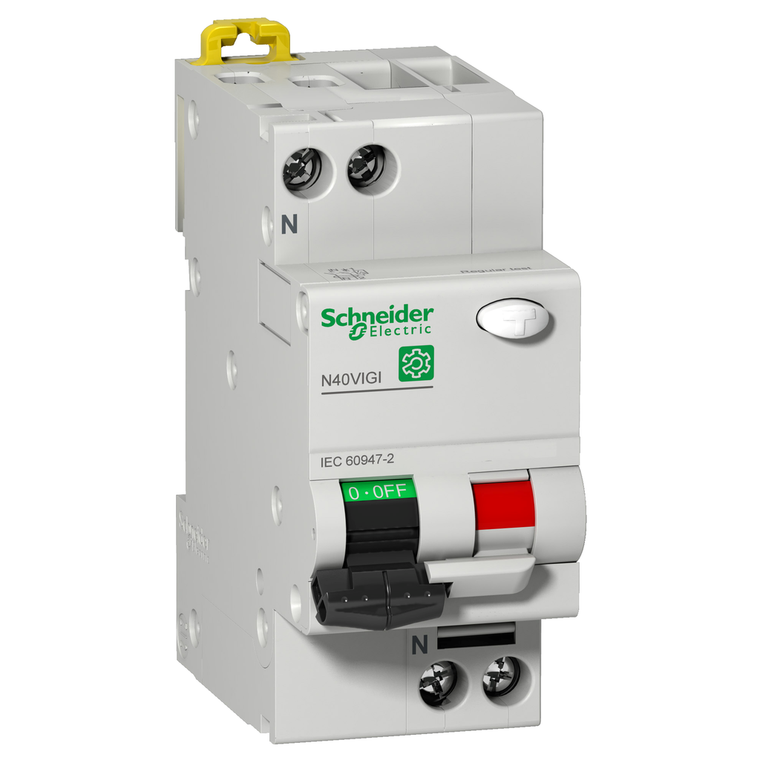

This Multi9 N40 Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 16A In rated current and C tripping curve. The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icu rated short circuit breaking capacity is up to 6kA according EN/IEC 60947-2 standard. The Icn rated short circuit breaking capacity is up to 6000 A according EN/IEC 61009-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A green strip on the toggle guarantees opening of all the poles in safety conditions. This product is compliant with EN/IEC 61009-1 and EN/IEC 60947-2 standards. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 70mm. The weight is 125g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -30°C to 70°C.
Additional Information
Device Short Name:
N40 Vigi
Electromagnetic Compatibility:
8/20 µs impulse withstand, 250 A
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Network Frequency:
50 Hz
Mounting Mode:
clip-on
Tightening Torque:
2-2 N.m top or bottom
Mechanical Durability:
20000 cycles
Product Or Component Type:
residual current breaker with overcurrent protection (RCBO)
Depth:
70 mm
Breaking Capacity:
6 kA Icu 240 V AC 50 Hz EN/IEC 60947-2 || 6000 A Icn 240 V AC 50 Hz EN/IEC 61009-1
Surge Current:
250 A
Utilisation Category:
category A EN/IEC 60947-2
Curve Code:
C
Rated Breaking And Making Capacity:
Idm 4500 A 240 V AC 50 Hz EN/IEC 61009-1
Earth-Leakage Protection Class:
type AC
Ambient Air Temperature For Storage:
-30-70 °C
Rohs Exemption Information:
Yes
[Ui] Rated Insulation Voltage:
400 V AC 50 Hz EN/IEC 60947-2
Local Signalling:
fault indication || ON/OFF indication
Eu Rohs Directive:
Compliant with Exemptions
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50 Hz
Circularity Profile:
ENVEOLI2306032
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Earth-Leakage Protection:
integrated
Control Type:
toggle
Overvoltage Category:
IV
Device Application:
distribution
Poles Description:
1P + N
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
240 V AC 50 Hz
Width:
36 mm
Limitation Class:
3 EN/IEC 61009-1
Height:
81 mm
Neutral Position:
left
Color:
Gray
Earth-Leakage Protection Time Delay:
instantaneous
Product Name:
Multi9 N40 Vigi
Halogen Content Performance:
Halogen free plastic parts product
Number Of Protected Poles:
1
Tropicalisation:
2 IEC 60068-1
Range:
Multi9
Connection Pitch:
9 mm between phase and neutral
Ambient Air Temperature For Operation:
-5-60 °C
Relative Humidity:
95-95 % 55-55 °C
9 Mm Pitches:
4
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Network Type:
AC
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC
Mounting Support:
DIN rail
Connections - Terminals:
tunnel type terminal top or bottom) 0.75-16 mm² - rigid || tunnel type terminal top or bottom) 0.33-10 mm² - flexible || tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
Residual Current Tripping Technology:
voltage independent
Wire Stripping Length:
13 mm for top or bottom connection
Trip Unit Technology:
thermal-magnetic
Sustainable Offer Status:
Green Premium product
Suitability For Isolation:
yes EN/IEC 60947-2
Pollution Degree:
3 EN/IEC 60947-2
Line Rated Current:
16 A 50 °C EN/IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Provision For Padlocking:
padlockable
Electrical Durability:
20000 cycles
Net Weight:
0.125 kg
Contact Position Indicator:
yes
Environmental Disclosure:
ENVPEP2306032EN
Earth-Leakage Sensitivity:
30 mA
Standards:
EN/IEC 61009-1 || EN/IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
4 kVEN/IEC 60947-2
