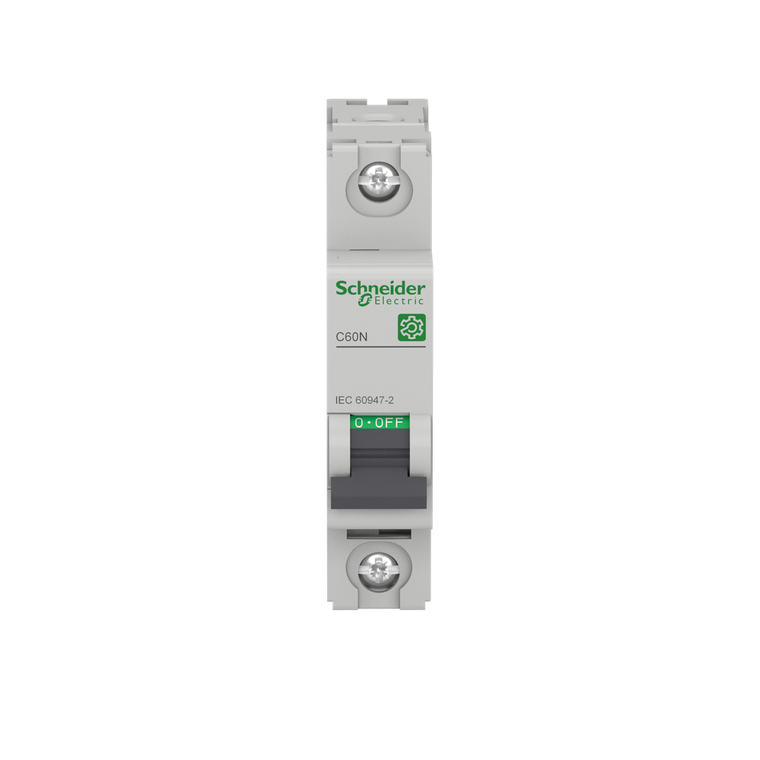

Schneider Electric M9F11104 Multi9 C60N 1P C 4A 10Ka 240V Mcb
Schneider Electric
$96.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 4A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Utilisation Category:
- category A EN/IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC
- Earth-Leakage Protection:
- separate block
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Limitation Class:
- 3
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
- Ambient Air Temperature For Storage:
- -40-80 °C
- Sustainable Offer Status:
- Green Premium product
- Halogen Content Performance:
- Halogen free product
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Poles Description:
- 1P
- Contact Position Indicator:
- yes
- Height:
- 81 mm
- Trip Unit Technology:
- thermal-magnetic
- Network Frequency:
- 50/60 Hz
- Control Type:
- toggle
- Device Application:
- distribution
- Eu Rohs Directive:
- Compliant with Exemptions
- Heat Dissipation:
- 2.4-2.4 W 240 V - 4 A
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 2-2 N.m top or bottom
- Wire Stripping Length:
- 14 mm for top or bottom connection
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Or Component Type:
- miniature circuit-breaker
- Curve Code:
- C
- Color:
- Gray
- Provision For Padlocking:
- padlockable
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Width:
- 18 mm
- Environmental Disclosure:
- ENVPEP1304004EN
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Device Short Name:
- C60N
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- 9 Mm Pitches:
- 2
- Relative Humidity:
- 95-95 % 55-55 °C
- Mercury Free:
- Yes
- Net Weight:
- 0.12 kg
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Electrical Durability:
- 10000 cycles
- Range:
- Multi9
- Pollution Degree:
- 3 EN/IEC 60947-2
- Standards:
- EN/IEC 60947-2
- Line Rated Current:
- 4 A 50 °C EN/IEC 60947-2
- Ambient Air Temperature For Operation:
- -30-70 °C
- Network Type:
- DC || AC
- Local Signalling:
- ON/OFF indication
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- EAC || KC || CCC
- Tropicalisation:
- 2 IEC 60068-1
- Product Name:
- Multi9 C60
- Depth:
- 72 mm
- Mounting Mode:
- clip-on
- Circularity Profile:
- N/A
- Breaking Capacity:
- 15 kA Icu <= 72 V DC EN/IEC 60947-2 || 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
- Overvoltage Category:
- IV
- Mounting Support:
- DIN rail
- Mechanical Durability:
- 20000 cycles
- Number Of Protected Poles:
- 1
