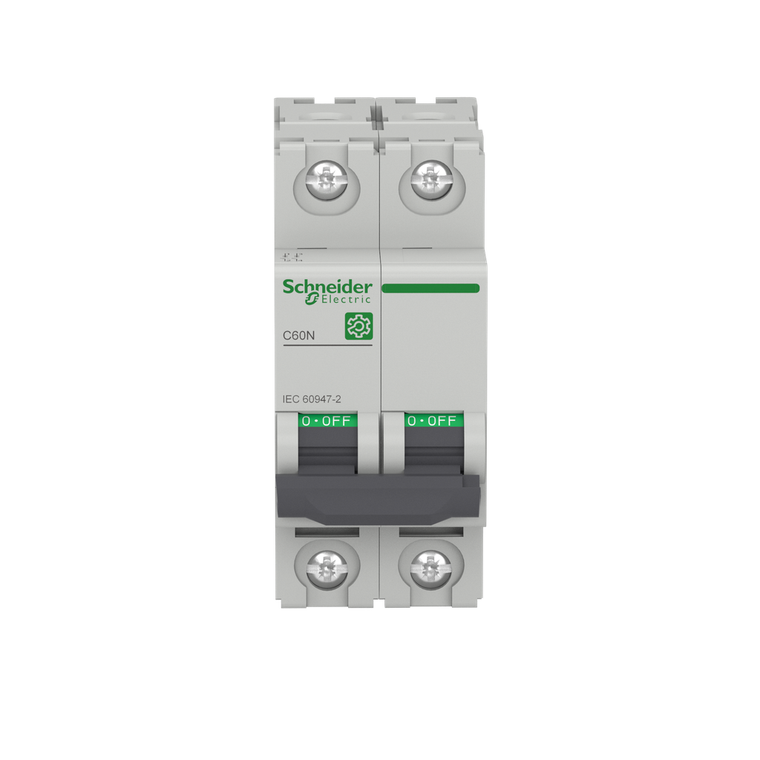

Schneider Electric M9F11202 Multi9 C60N 2P C 2A 10Ka 415V Mcb

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9F11202 Multi9 C60N 2P C 2A 10Ka 415V Mcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9F11202

UPC:

3606480576201

MPN:

Condition:

New

Eu Rohs Directive:

Compliant with Exemptions

Circularity Profile:

N/A

Number Of Protected Poles:

2

Suitability For Isolation:

yes EN/IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Mode:

clip-on

Device Application:

distribution

Ambient Air Temperature For Operation:

-30-70 °C

Trip Unit Technology:

thermal-magnetic

Product Name:

Multi9 C60

Wire Stripping Length:

14 mm for top or bottom connection

Environmental Disclosure:

ENVPEP1304004EN

Color:

Gray

Electrical Durability:

10000 cycles

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-40-80 °C

Earth-Leakage Protection:

separate block

Provision For Padlocking:

padlockable

Control Type:

toggle

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Tropicalisation:

2 IEC 60068-1

Utilisation Category:

category A EN/IEC 60947-2

Heat Dissipation:

5.2-5.2 W 415 V - 2 A

Magnetic Tripping Limit:

8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule

Breaking Capacity:

20 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2

Local Signalling:

ON/OFF indication

Curve Code:

C

Device Short Name:

C60N

Halogen Content Performance:

Halogen free product

[Ui] Rated Insulation Voltage:

500 V AC 50/60 Hz EN/IEC 60947-2

Tightening Torque:

2-2 N.m top or bottom

Sustainable Offer Status:

Green Premium product

Product Certifications:

EAC || KC || CCC

Limitation Class:

3

Net Weight:

0.24 kg

Line Rated Current:

2 A 50 °C EN/IEC 60947-2

Relative Humidity:

95-95 % 55-55 °C

Standards:

EN/IEC 60947-2

Depth:

72 mm

Width:

36 mm

Poles Description:

2P

Overvoltage Category:

IV

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC

Network Type:

DC || AC

Pollution Degree:

3 EN/IEC 60947-2

Range:

Multi9

Rohs Exemption Information:

Yes

Mechanical Durability:

20000 cycles

Mounting Support:

DIN rail

Network Frequency:

50/60 Hz

Contact Position Indicator:

yes

9 Mm Pitches:

4

Product Or Component Type:

miniature circuit-breaker

Height:

81 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ics] Rated Service Breaking Capacity:

7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 125 V DC
