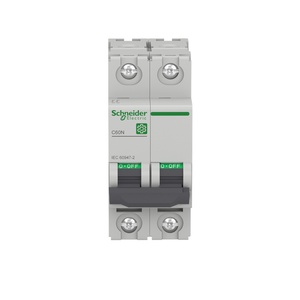

Schneider Electric M9F11225 Multi9 C60N 2P C 25A 10Ka 415V Mcb
Schneider Electric
$207.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Device Short Name:
- C60N
- Product Name:
- Multi9 C60
- Line Rated Current:
- 25 A 50 °C EN/IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Pollution Degree:
- 3 EN/IEC 60947-2
- Number Of Protected Poles:
- 2
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Mechanical Durability:
- 20000 cycles
- Breaking Capacity:
- 20 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.24 kg
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Network Type:
- DC || AC
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Tropicalisation:
- 2 IEC 60068-1
- Local Signalling:
- ON/OFF indication
- Ambient Air Temperature For Operation:
- -30-70 °C
- Environmental Disclosure:
- ENVPEP1304004EN
- Overvoltage Category:
- IV
- Mercury Free:
- Yes
- Range:
- Multi9
- Mounting Support:
- DIN rail
- Curve Code:
- C
- Electrical Durability:
- 10000 cycles
- Product Or Component Type:
- miniature circuit-breaker
- Earth-Leakage Protection:
- separate block
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Tightening Torque:
- 2-2 N.m top or bottom
- Utilisation Category:
- category A EN/IEC 60947-2
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Heat Dissipation:
- 6.2-6.2 W 415 V - 25 A
- Provision For Padlocking:
- padlockable
- Trip Unit Technology:
- thermal-magnetic
- Standards:
- EN/IEC 60947-2
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
- Mounting Mode:
- clip-on
- Halogen Content Performance:
- Halogen free product
- Contact Position Indicator:
- yes
- 9 Mm Pitches:
- 4
- Device Application:
- distribution
- Height:
- 81 mm
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 125 V DC
- Ambient Air Temperature For Storage:
- -40-80 °C
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Color:
- Gray
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Product Certifications:
- EAC || KC || CCC
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Type:
- toggle
- Limitation Class:
- 3
- Relative Humidity:
- 95-95 % 55-55 °C
- Circularity Profile:
- N/A
- Depth:
- 72 mm
- Rohs Exemption Information:
- Yes
- Width:
- 36 mm
- Poles Description:
- 2P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
