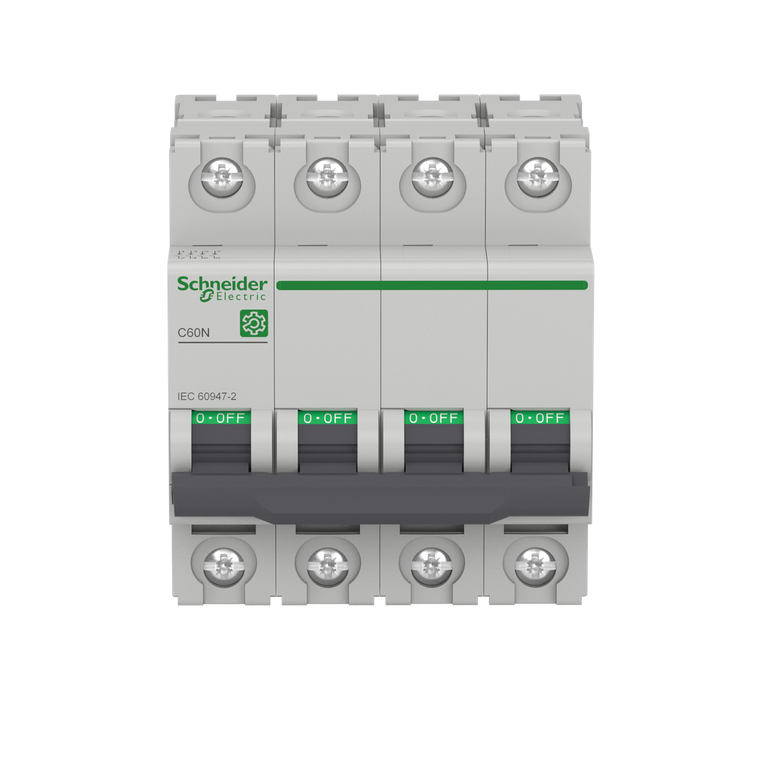

Schneider Electric M9F11425 Multi9 C60N 4P C 25A 10Ka 415V Mcb
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 72mm. The weight is 0.48kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 72 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contact Position Indicator:
- yes
- Earth-Leakage Protection:
- separate block
- 9 Mm Pitches:
- 8
- Circularity Profile:
- N/A
- Mounting Support:
- DIN rail
- Rohs Exemption Information:
- Yes
- Product Certifications:
- EAC || CCC
- Curve Code:
- C
- Mounting Mode:
- clip-on
- Control Type:
- toggle
- Line Rated Current:
- 25 A 50 °C EN/IEC 60947-2
- Standards:
- EN/IEC 60947-2
- Heat Dissipation:
- 12.4-12.4 W 415 V - 25 A
- Product Name:
- Multi9 C60
- Trip Unit Technology:
- thermal-magnetic
- Number Of Protected Poles:
- 4
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Network Type:
- DC || AC
- Utilisation Category:
- category A EN/IEC 60947-2
- Net Weight:
- 0.48 kg
- Range:
- Multi9
- Width:
- 72 mm
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Breaking Capacity:
- 40 kA Icu <= 250 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
- Environmental Disclosure:
- ENVPEP1304004EN
- Poles Description:
- 4P
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Halogen Content Performance:
- Halogen free product
- Provision For Padlocking:
- padlockable
- Mechanical Durability:
- 20000 cycles
- Ambient Air Temperature For Storage:
- -40-80 °C
- Tropicalisation:
- 2 IEC 60068-1
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Overvoltage Category:
- IV
- Pollution Degree:
- 3 EN/IEC 60947-2
- Height:
- 81 mm
- Tightening Torque:
- 2-2 N.m top or bottom
- Device Short Name:
- C60N
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Electrical Durability:
- 10000 cycles
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Device Application:
- distribution
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Ambient Air Temperature For Operation:
- -30-70 °C
- Local Signalling:
- ON/OFF indication
- Limitation Class:
- 3
- Product Or Component Type:
- miniature circuit-breaker
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 250 V DC
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Relative Humidity:
- 95-95 % 55-55 °C
- Color:
- Gray
- Network Frequency:
- 50/60 Hz
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 40 kA 100 % EN/IEC 60947-2 - <= 250 V DC
