Schneider Electric M9F22316 Multi9 C60Sp 3P C 16A 10Ka 480Y/277V Mcb
Schneider Electric
$315.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

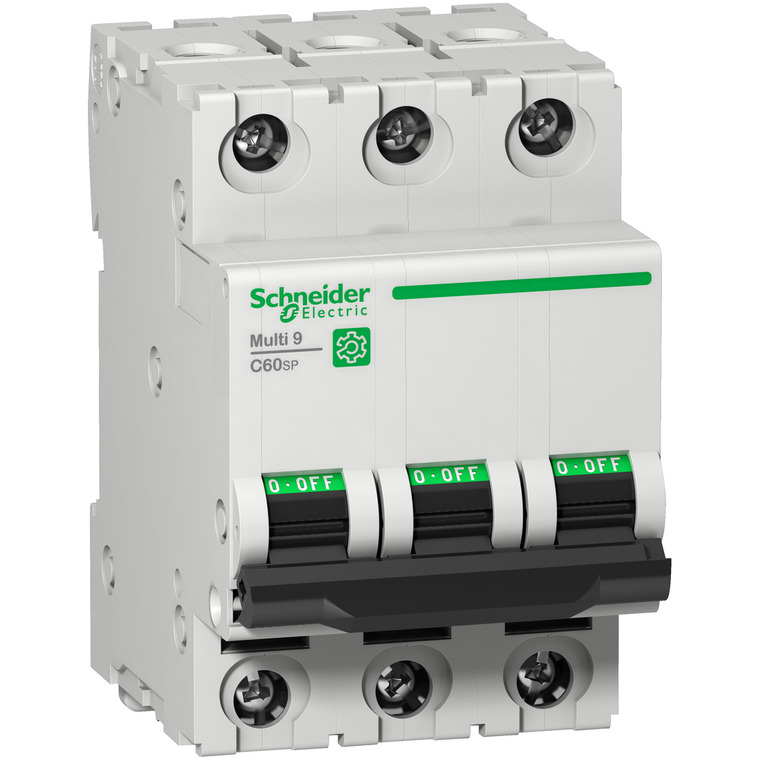

Schneider Electric M9F22316 Multi9 C60Sp 3P C 16A 10Ka 480Y/277V Mcb
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 16A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Environmental Disclosure:
- ENVPEP1304004EN
- Network Type:
- AC
- Mechanical Durability:
- 20000 cycles
- Tightening Torque:
- 2.5-2.5 N.m top or bottom
- Control Type:
- toggle
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Trip Unit Technology:
- thermal-magnetic
- 9 Mm Pitches:
- 6
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
- Circularity Profile:
- N/A
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
- Eu Rohs Directive:
- Compliant with Exemptions
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- miniature circuit-breaker
- Device Short Name:
- C60SP
- Earth-Leakage Protection:
- without
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Mounting Support:
- DIN rail
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Width:
- 54 mm
- Ambient Air Temperature For Storage:
- -40-80 °C
- Ambient Air Temperature For Operation:
- -30-70 °C
- Device Application:
- distribution
- Mounting Mode:
- clip-on
- Curve Code:
- C
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Breaking Capacity:
- 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 609
- Provision For Padlocking:
- padlockable
- Product Certifications:
- IEC || CCC || UR || CSA
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC
- Tropicalisation:
- 2 IEC 60068-1
- Height:
- 81 mm
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Halogen Content Performance:
- Halogen free product
- Color:
- Gray
- Local Signalling:
- ON/OFF indication
- Range:
- Multi9
- Poles Description:
- 3P
- Mercury Free:
- Yes
- Pollution Degree:
- 3 EN/IEC 60947-2
- Line Rated Current:
- 16 A 25 °C EN/IEC 60947-2
- Depth:
- 72 mm
- Relative Humidity:
- 95-95 % 55-55 °C
- Number Of Protected Poles:
- 3
- Contact Position Indicator:
- yes
- Product Name:
- Multi9 C60
- Electrical Durability:
- 10000 cycles
- Sustainable Offer Status:
- Green Premium product
- Brochure:
- View
- Datasheet:
- View
