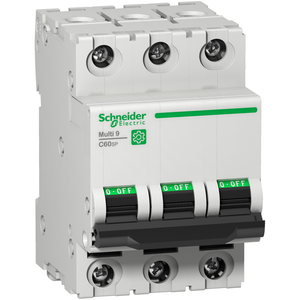

Schneider Electric M9F22332 Multi9 C60Sp 3P C 32A 10Ka 480Y/277V Mcb

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9F22332 Multi9 C60Sp 3P C 32A 10Ka 480Y/277V Mcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9F22332

UPC:

3.60648E+12

MPN:

Condition:

New

Depth:

72 mm

Ambient Air Temperature For Operation:

-30-70 °C

[Ics] Rated Service Breaking Capacity:

4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC

Device Short Name:

C60SP

Sustainable Offer Status:

Green Premium product

Local Signalling:

ON/OFF indication

Mercury Free:

Yes

Magnetic Tripping Limit:

8.5 x In +/- 20 % AC

Pollution Degree:

3 EN/IEC 60947-2

Connections - Terminals:

tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible

Control Type:

toggle

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Curve Code:

C

Mounting Mode:

clip-on

9 Mm Pitches:

6

Network Type:

AC

Environmental Disclosure:

ENVPEP1304004EN

Halogen Content Performance:

Halogen free product

Product Certifications:

IEC || CCC || UR || CSA

Eu Rohs Directive:

Compliant with Exemptions

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Height:

81 mm

Product Or Component Type:

miniature circuit-breaker

Mechanical Durability:

20000 cycles

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-80 °C

Earth-Leakage Protection:

without

Range:

Multi9

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Tightening Torque:

3.5-3.5 N.m top or bottom

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Wire Stripping Length:

14 mm for top or bottom connection

Electrical Durability:

10000 cycles

Number Of Protected Poles:

3

Operating Altitude:

0...6561.68 ft (0...2000 m)

Mounting Support:

DIN rail

Circularity Profile:

N/A

Poles Description:

3P

Tropicalisation:

2 IEC 60068-1

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Contact Position Indicator:

yes

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz

Relative Humidity:

95-95 % 55-55 °C

Product Name:

Multi9 C60

Suitability For Isolation:

yes EN/IEC 60947-2

Breaking Capacity:

14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 609

Trip Unit Technology:

thermal-magnetic

Device Application:

distribution

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235

Line Rated Current:

32 A 25 °C EN/IEC 60947-2

Color:

Gray

Provision For Padlocking:

padlockable

[Ui] Rated Insulation Voltage:

500 V AC EN/IEC 60947-2

Width:

54 mm
