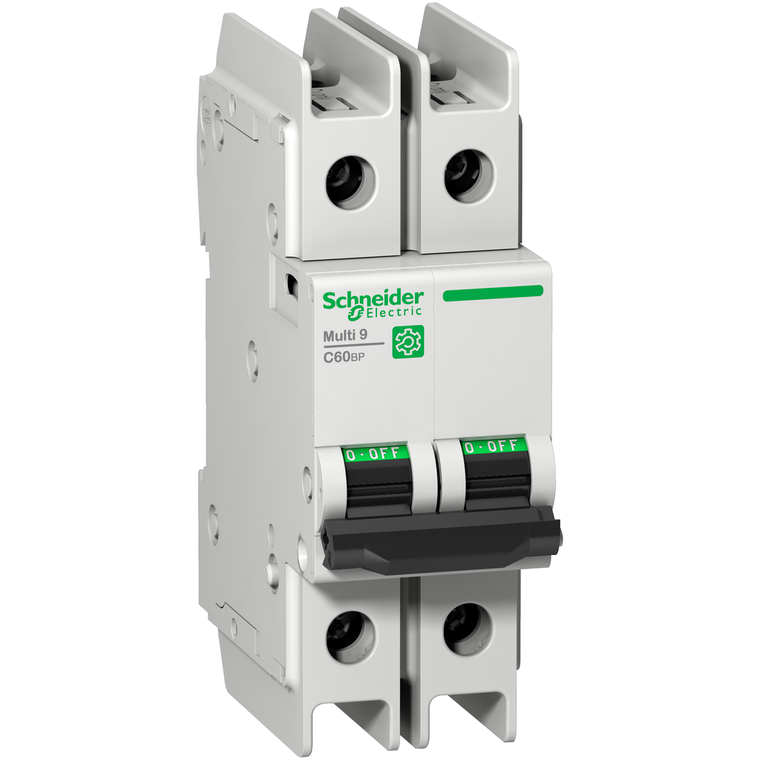

Schneider Electric M9F42263 Multi9 C60Bp 2P C 63A 10Ka 240V Ul489
Schneider Electric
$257.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Range:
- Multi9
- Product Name:
- Multi9 C60
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Control Type:
- toggle
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Pollution Degree:
- 3 EN/IEC 60947-2
- Line Rated Current:
- 63 A 25 °C EN/IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- IEC || CCC || CSA || UL
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- Height:
- 103 mm
- Halogen Content Performance:
- Halogen free product
- Trip Unit Technology:
- thermal-magnetic
- Product Or Component Type:
- miniature circuit-breaker
- Local Signalling:
- ON/OFF indication
- Contact Position Indicator:
- yes
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Relative Humidity:
- 95-95 % 55-55 °C
- Earth-Leakage Protection:
- without
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Electrical Durability:
- 10000 cycles
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Mounting Mode:
- clip-on
- Device Short Name:
- C60BP
- Number Of Protected Poles:
- 2
- Curve Code:
- C
- Network Type:
- AC
- Depth:
- 72 mm
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Width:
- 36 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Color:
- Gray
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC
- Ambient Air Temperature For Operation:
- -30-70 °C
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Provision For Padlocking:
- padlockable
- Environmental Disclosure:
- ENVPEP1304004EN
- Breaking Capacity:
- 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 10 kA AIR 240 V AC UL 489 || 10 kA AIR 240
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Poles Description:
- 2P
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- 9 Mm Pitches:
- 4
- Device Application:
- distribution
- Mounting Support:
- DIN rail
- Mechanical Durability:
- 20000 cycles
- Tropicalisation:
- 2 IEC 60068-1
- Ambient Air Temperature For Storage:
- -40-80 °C
