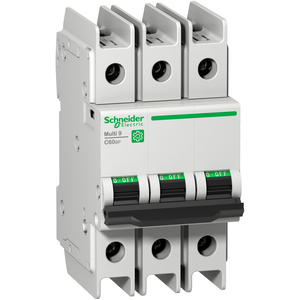

Schneider Electric M9F43304 Multi9 C60Bp 3P D 4A 10Ka 480Y/277V Mcb

Schneider Electric M9F43304 Multi9 C60Bp 3P D 4A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F43304
|
UPC:
3606481170514
$387.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 4A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Mercury Free:
Yes
Halogen Content Performance:
Halogen free product
Suitability For Isolation:
yes EN/IEC 60947-2
Product Or Component Type:
miniature circuit-breaker
Mechanical Durability:
20000 cycles
Device Short Name:
C60BP
Provision For Padlocking:
padlockable
Height:
103 mm
Operating Altitude:
0...6561.68 ft (0...2000 m)
Number Of Protected Poles:
3
Color:
Gray
Poles Description:
3P
Pollution Degree:
3 EN/IEC 60947-2
Mounting Mode:
clip-on
Line Rated Current:
4 A 25 °C EN/IEC 60947-2
9 Mm Pitches:
6
Contact Position Indicator:
yes
Breaking Capacity:
6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 480
Circularity Profile:
N/A
Environmental Disclosure:
ENVPEP1304004EN
Product Name:
Multi9 C60
Ambient Air Temperature For Operation:
-30-70 °C
Local Signalling:
ON/OFF indication
Relative Humidity:
95-95 % 55-55 °C
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Magnetic Tripping Limit:
12 x In +/- 20 % AC
Eu Rohs Directive:
Compliant with Exemptions
Electrical Durability:
10000 cycles
Tropicalisation:
2 IEC 60068-1
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Range:
Multi9
Depth:
72 mm
Network Type:
AC
Product Certifications:
IEC || CCC || CSA || UL
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Earth-Leakage Protection:
without
Trip Unit Technology:
thermal-magnetic
Wire Stripping Length:
14 mm for top or bottom connection
Device Application:
distribution
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Curve Code:
D
Control Type:
toggle
Ambient Air Temperature For Storage:
-40-80 °C
Rohs Exemption Information:
Yes
Mounting Support:
DIN rail
Sustainable Offer Status:
Green Premium product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Width:
54 mm
Tightening Torque:
2.5-2.5 N.m top or bottom
