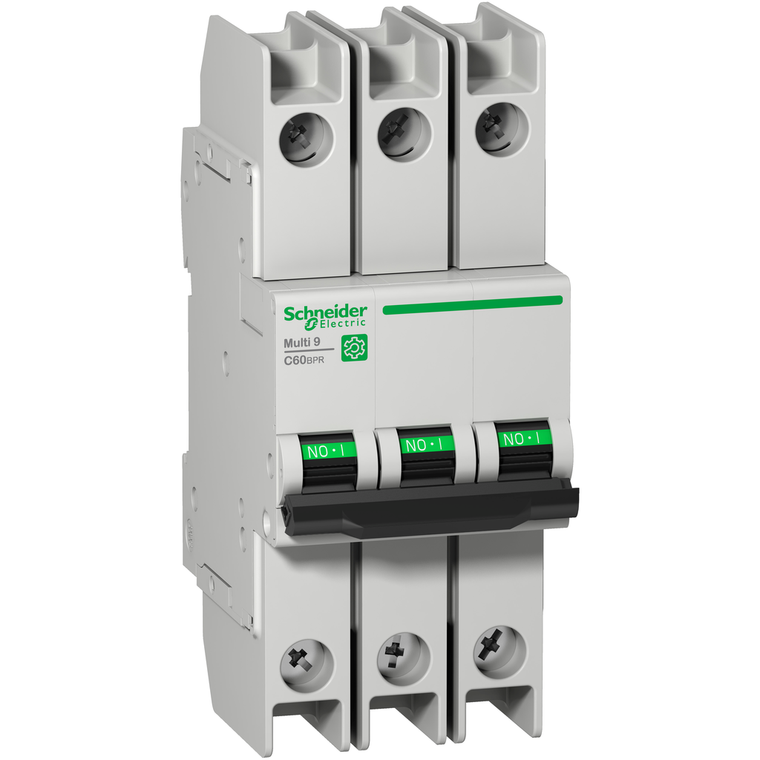

Schneider Electric M9F52308 Multi9 C60Bpr 3P C 8A 10Ka 480Y/277V Mcb Pack of 4
Schneider Electric
$2,268.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 8A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Trip Unit Technology:
- thermal-magnetic
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Number Of Protected Poles:
- 3
- Mechanical Durability:
- 20000 cycles
- Earth-Leakage Protection:
- without
- 9 Mm Pitches:
- 6
- Eu Rohs Directive:
- Compliant with Exemptions
- Rohs Exemption Information:
- Yes
- Network Type:
- AC
- Environmental Disclosure:
- ENVPEP1304004EN
- Circularity Profile:
- N/A
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC
- Ambient Air Temperature For Storage:
- -40-80 °C
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Range:
- Multi9
- Provision For Padlocking:
- padlockable
- Overvoltage Category:
- IV
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Electrical Durability:
- 10000 cycles
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Tightening Torque:
- 2-2 N.m top or bottom
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Curve Code:
- C
- Height:
- 127 mm
- Contact Position Indicator:
- yes
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Mounting Support:
- DIN rail
- Breaking Capacity:
- 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 480
- Connections - Terminals:
- ring terminal top or bottom)
- Pollution Degree:
- 3 EN/IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Relative Humidity:
- 95-95 % 55-55 °C
- Control Type:
- toggle
- Poles Description:
- 3P
- Product Certifications:
- IEC || CCC || CSA || UL
- Depth:
- 72 mm
- Color:
- Gray
- Sustainable Offer Status:
- Green Premium product
- Product Name:
- Multi9 C60
- Width:
- 54 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Short Name:
- C60BPR
- Local Signalling:
- ON/OFF indication
- Mercury Free:
- Yes
- Mounting Mode:
- clip-on
- Ambient Air Temperature For Operation:
- -30-70 °C
- Line Rated Current:
- 8 A 25 °C EN/IEC 60947-2
- Product Or Component Type:
- miniature circuit-breaker
- Device Application:
- distribution
- Halogen Content Performance:
- Halogen free product
- Tropicalisation:
- 2 IEC 60068-1
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
