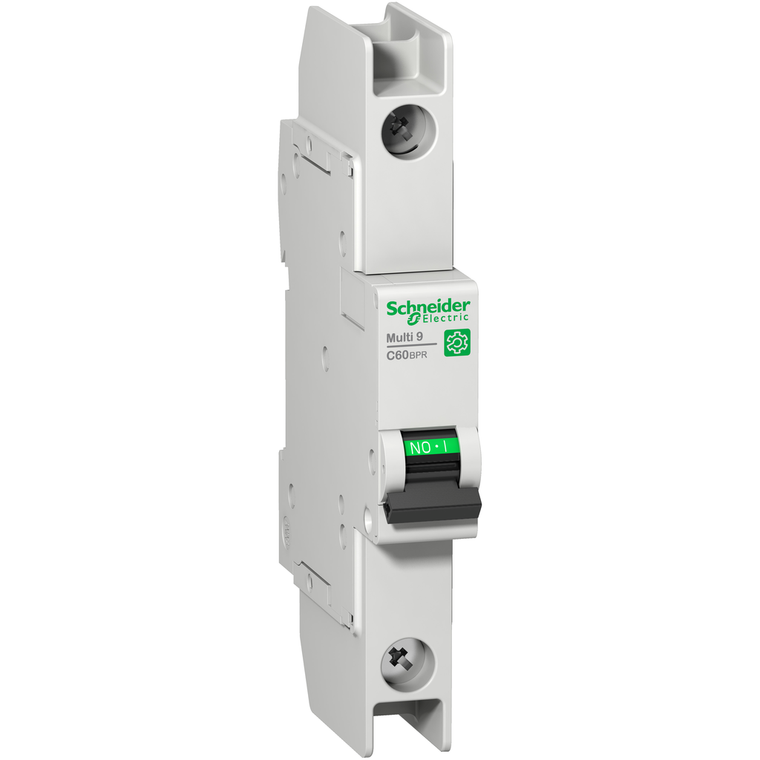

Schneider Electric M9F53108 Multi9 C60Bpr 1P D 8A 10Ka 277V Ul489

Schneider Electric M9F53108 Multi9 C60Bpr 1P D 8A 10Ka 277V Ul489

Schneider Electric
SKU:
M9F53108
|
UPC:
3606481171252
Availability:
Factory stock
$122.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 8A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Mechanical Durability:
20000 cycles
Depth:
72 mm
Contact Position Indicator:
yes
9 Mm Pitches:
2
Curve Code:
D
Trip Unit Technology:
thermal-magnetic
Operating Altitude:
0...6561.68 ft (0...2000 m)
Eu Rohs Directive:
Compliant with Exemptions
Poles Description:
1P
Product Certifications:
IEC || CCC || CSA || UL
Color:
Gray
Control Type:
toggle
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Connections - Terminals:
ring terminal top or bottom)
Relative Humidity:
95-95 % 55-55 °C
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Network Type:
DC || AC
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
Number Of Protected Poles:
1
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Line Rated Current:
8 A 25 °C EN/IEC 60947-2
Environmental Disclosure:
ENVPEP1304004EN
Halogen Content Performance:
Halogen free product
Sustainable Offer Status:
Green Premium product
Circularity Profile:
N/A
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Durability:
10000 cycles
Earth-Leakage Protection:
without
Local Signalling:
ON/OFF indication
Mounting Mode:
clip-on
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Breaking Capacity:
3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
Device Application:
distribution
Width:
18 mm
Ambient Air Temperature For Storage:
-40-80 °C
Height:
127 mm
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Product Or Component Type:
miniature circuit-breaker
Tropicalisation:
2 IEC 60068-1
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Pollution Degree:
3 EN/IEC 60947-2
Device Short Name:
C60BPR
Suitability For Isolation:
yes EN/IEC 60947-2
Provision For Padlocking:
padlockable
Overvoltage Category:
IV
Product Name:
Multi9 C60
Ambient Air Temperature For Operation:
-30-70 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Range:
Multi9
Mounting Support:
DIN rail
Tightening Torque:
2-2 N.m top or bottom
