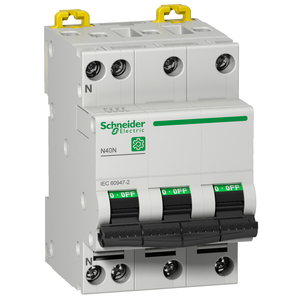

Schneider Electric M9P22720 Multi9 N40N 3P-N 20A C 10Ka 415V Mcb

(No reviews yet) Write a Review
SKU:
M9P22720
UPC:
3.60648E+12
Condition:
New
Height:
81 mm
Rohs Exemption Information:
Yes
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz
Mercury Free:
Yes
Device Application:
distribution
Mounting Mode:
clip-on
Line Rated Current:
20 A 50 °C EN/IEC 60947-2
Width:
54 mm
[Uimp] Rated Impulse Withstand Voltage:
4 kVEN/IEC 60947-2
Poles Description:
3P + N
Breaking Capacity:
10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2
Limitation Class:
3 EN/IEC 60947-2
[Ue] Rated Operational Voltage:
415 V AC 50/60 Hz between phases
9 Mm Pitches:
6
Control Type:
toggle
Pollution Degree:
3 EN/IEC 60947-2
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Relative Humidity:
95-95 % 55-55 °C
Tropicalisation:
2 IEC 60068-1
Contact Position Indicator:
yes
Local Signalling:
ON/OFF indication
Range:
Multi9
Curve Code:
C
Trip Unit Technology:
thermal-magnetic
Ambient Air Temperature For Operation:
-25-70 °C
Number Of Protected Poles:
3
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
miniature circuit-breaker
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Network Frequency:
50/60 Hz
Network Type:
AC
Neutral Position:
left
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC
Device Short Name:
N40N
Wire Stripping Length:
13 mm for top or bottom connection
Connections - Terminals:
tunnel type terminal top or bottom) 0.75-16 mm² - rigid || tunnel type terminal top or bottom) 0.33-10 mm² - flexible || tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Environmental Disclosure:
ENVPEP100611EN
Electrical Durability:
20000 cycles
Depth:
78 mm
Color:
Gray
Net Weight:
0.322 kg
Sustainable Offer Status:
Green Premium product
Halogen Content Performance:
Halogen free product
Ambient Air Temperature For Storage:
-40-70 °C
Product Name:
Multi9 N40
Mounting Support:
DIN rail
Tightening Torque:
2-2 N.m top or bottom
Suitability For Isolation:
yes EN/IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Earth-Leakage Protection:
separate block
Mechanical Durability:
20000 cycles
Provision For Padlocking:
padlockable
Eu Rohs Directive:
Compliant with Exemptions
Circularity Profile:
N/A
Standards:
EN/IEC 60947-2
  • Schneider Electric M9P22720 Multi9 N40N 3P-N 20A C 10Ka 415V Mcb
  • Schneider Electric M9P22720 Multi9 N40N 3P-N 20A C 10Ka 415V Mcb
$558.00

Description

This Multi9 N40N is a low voltage miniature circuit breaker (MCB). It is a 3P+N circuit breaker with 3 protected poles, 20A rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 10kA at 415VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 78mm. The weight is 0.322kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
