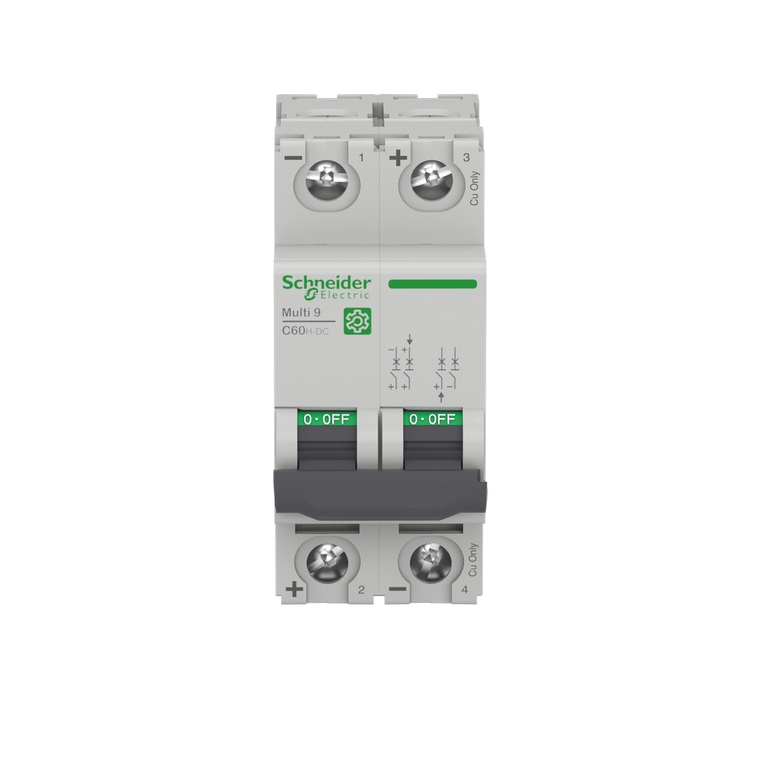

Schneider Electric M9U21201 Multi9 C60H-Dc 2P C 1A 10Ka 500V-Dc Mcb

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9U21201 Multi9 C60H-Dc 2P C 1A 10Ka 500V-Dc Mcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9U21201

UPC:

3.60648E+12

MPN:

Condition:

New

Circularity Profile:

N/A

Utilisation Category:

category A EN/IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Network Type:

DC

Net Weight:

0.256 kg

Depth:

73 mm

Height:

81 mm

9 Mm Pitches:

4

Line Rated Current:

1 A 25 °C EN/IEC 60947-2

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Eu Rohs Directive:

Compliant

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Tropicalisation:

2 IEC 60068-2 || 2 GB 14048.2

Ambient Air Temperature For Operation:

-25-70 °C

Breaking Capacity:

20 kA Icu 220 V DC EN/IEC 60947-2 || 10 kA Icu 440 V DC EN/IEC 60947-2 || 6 kA Icu 500 V DC EN/IEC 60947-2 || 5 kA AIR 12...500 V DC UL 1077 || 20 kA Icu 220 V DC GB 14048.2 || 10 kA Icu 440 V DC GB 14048.2 || 6 kA Icu 500 V DC GB 14048.2

Product Certifications:

IEC || CCC || UR

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - rigid stranded || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible with ferrule || tunnel

Suitability For Isolation:

yes EN/IEC 60947-2

Color:

Gray

Product Or Component Type:

miniature circuit-breaker

Number Of Protected Poles:

2

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 1077

[Ics] Rated Service Breaking Capacity:

7.5 kA 75 % EN/IEC 60947-2 - 440 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 500 V DC || 15 kA 75 % EN/IEC 60947-2 - 220 V DC || 7.5 kA 75 % GB 14048.2 - 440 V DC || 4.5 kA 75 % GB 14048.2 - 500 V DC || 15 kA 75 % GB 14048.2 - 220 V DC

Local Signalling:

ON/OFF indication

Width:

36 mm

[Ui] Rated Insulation Voltage:

500 V DC EN/IEC 60947-2

Device Application:

distribution

Device Short Name:

C60H-DC

Range:

Multi9

Product Name:

Multi9 C60H-DC

Contact Position Indicator:

yes

Toxic Heavy Metal Free:

Yes

Wire Stripping Length:

14 mm for top or bottom connection

Electrical Durability:

3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC

Reach Free Of Svhc:

Yes

Mounting Mode:

clip-on

Rohs Exemption Information:

Yes

Control Type:

toggle

Pollution Degree:

3 EN/IEC 60947-2

Heat Dissipation:

4.6-4.6 W 440 V - 1 A

Mounting Support:

DIN rail

[Ue] Rated Operational Voltage:

220 V DC || 440 V DC || 500 V DC

Relative Humidity:

95-95 % 55-55 °C

Earth-Leakage Protection:

without

Mercury Free:

Yes

Curve Code:

C

Poles Description:

2P

Mechanical Durability:

20000 cycles

Provision For Padlocking:

padlockable

Ambient Air Temperature For Storage:

-40-85 °C

Sustainable Offer Status:

Green Premium product

Trip Unit Technology:

thermal-magnetic

Environmental Disclosure:

ENVPEP2308050EN

Magnetic Tripping Limit:

7...10 x In DC

Tightening Torque:

2.5-2.5 N.m top or bottom
