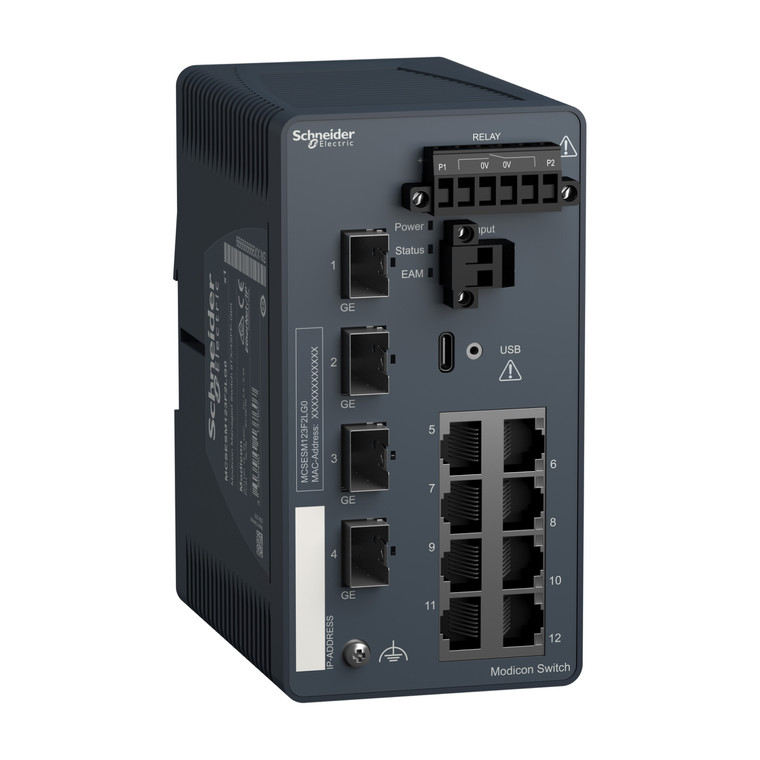

Schneider Electric MCSESM123F2LG0 Modicon Managed Switch 8Tx/4Sfp-Gbit

(No reviews yet) Write a Review

Write a Review

Schneider Electric MCSESM123F2LG0 Modicon Managed Switch 8Tx/4Sfp-Gbit

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

MCSESM123F2LG0

UPC:

3606481463449

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP2003019EN

Transmission Support Medium:

twisted shielded pairs cable CAT 5E copper cable || fiber optic cable fiber optic (Gbit)

Integrated Connection Type:

shielded RJ45 copper cable || SFP port fiber optic (Gbit)

Redundancy:

HiPER ring || RSTP || link aggregation || link backup || redundant network coupling || MRP

Range Of Product:

Modicon

Relative Humidity:

1-95 % non-condensing

Port Ethernet:

10/100BASE-TX - 8 copper cable || 100/1000 SFP - 4

Alarm Output:

1 voltfree contact 1 A

Mercury Free:

Yes

Product Certifications:

CE || UL || RCM || DNV || ATEX

Net Weight:

0.57 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ip Degree Of Protection:

IP30

Standards:

UL 61010-2-201 || EN/IEC 61131-2 || EN/IEC 62368-1

Sustainable Offer Status:

Green Premium product

Function Available:

security status || alarms (Traps) || system information || report

Supply Voltage Limits:

9.6-32 V DC SELV

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Directives:

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Power Consumption In W:

9 W

Concept:

Transparent Ready

Depth:

117.6 mm

Product Or Component Type:

Ethernet TCP/IP managed switch

Ambient Air Temperature For Operation:

0-60 °C

Rohs Exemption Information:

Yes

Warranty:

18 months

Maximum Cable Distance Between Devices:

100 m copper cable

Electrical Connection:

removable connector 6 ways power supply

Marking:

CE || cULus || RCM

Height:

142.8 mm

Diagnostics Run Time:

signal contact || self test || MAC notification

Ethernet Service:

configuration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG

Local Signalling:

for P1 P2 power supplies 1 dual colour LED (green/yellow) || for device status 1 dual colour LED (green/red) || for memory key status 1 dual colour LED (green/yellow) || for channel diagnostic 1 dual colour LED (green/yellow)

China Rohs Regulation:

X

Alarm Function:

power supply fault || data link status || switch fault || temperature threshold || redundancy ring fault || incorrect configuration || external memory removed

Maximum Number Of Switches In Cascade:

unlimited

Maximum Number Of Switches In A Ring:

50

Mounting Support:

35 mm symmetrical DIN rail

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

12...24 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Width:

73 mm

Communication Port Protocol:

Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || SFTP || SCP || LLDP || Telnet || SNTP

Cybersecurity:

port hardening || IP-based port security || MAC-based port security || port-based access control || role-based access control || RADIUS assignment || HTTPS || DoS prevention || VLAN-based ACL || audit trail || SNMP logging || pre-login banner

Communication Service:

TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection

Circularity Profile:

ENVEOLI2003019EN

Ethernet Cabling System:

TF switches

Catalog:

View

Datasheet:

View
