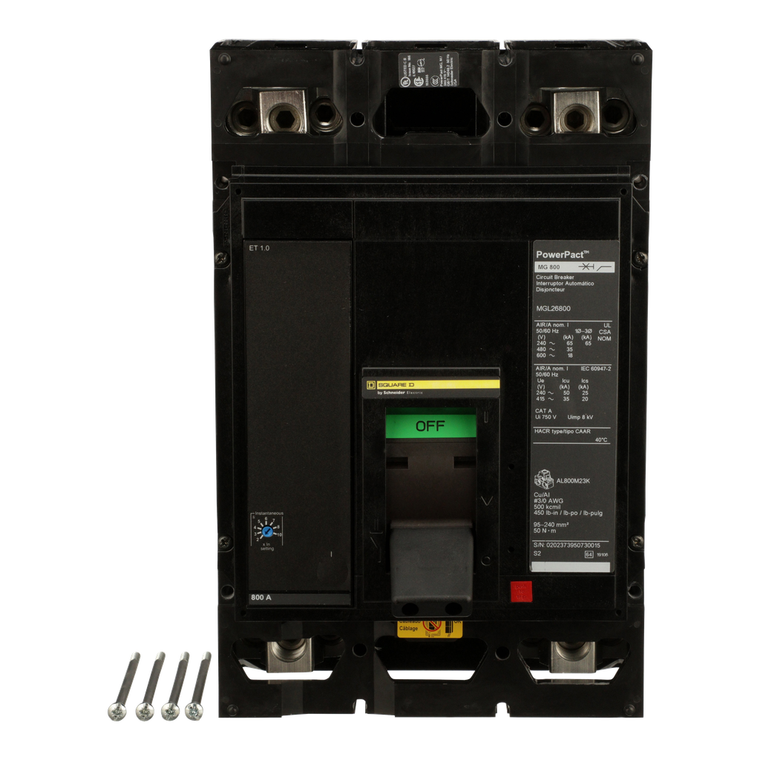

Schneider Electric MGL26800 Molded Case Circuit Breaker 600V 800A

Schneider Electric MGL26800 Molded Case Circuit Breaker 600V 800A

Schneider Electric
SKU:
MGL26800
|
UPC:
785901507628
$7,719.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 800A, 2 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Ip Degree Of Protection:
IP40
Magnetic Tripping Current:
1600-8000 A
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Device Application:
distribution
Control Type:
operating handle
Wire Stripping Length:
25 mm
Width:
8.27 in
Net Weight:
29 lb(US)
Sustainable Offer Status:
Green Premium product
Breaking Capacity Code:
G
Utilisation Category:
category A
Trip Unit Technology:
electronic, basic, ET 1.0,
Pollution Degree:
3 IEC 60947-1
Long Time Pick-Up Adjustment Range:
300...800 A
Environmental Disclosure:
ENVPEP2206030EN
Eu Rohs Directive:
Compliant with Exemptions
Electrical Connection:
lugs, load || lugs, line
Warranty:
18 months
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Network Frequency:
50/60 Hz
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Local Signalling:
1 trip indicator green)
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Pvc Free:
Yes
Circularity Profile:
ENVEOLI2206030EN
Product Name:
PowerPact M
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Awg Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Range:
PowerPact
Ambient Air Temperature For Storage:
-50-85 °C
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Mounting Mode:
unit mount lug)
Circuit Breaker Application:
HACR rated
Line Rated Current:
800-800 A
Suitability For Isolation:
yes IEC 60947-2
Quality Labels:
CE
Height:
12.86 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Trip Unit Name:
ET 1.0
Mercury Free:
Yes
Product Certifications:
UL || CSA || NOM
Depth:
8.05 in
Mounting Support:
lug
Product Or Component Type:
circuit breaker
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Rohs Exemption Information:
Yes
Poles Description:
2P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quantity Per Set:
1
Ambient Air Temperature For Operation:
-25-70 °C
Terminal Identifier:
AL800M23K
Continuous Current Rating:
0.8
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Color:
Black
