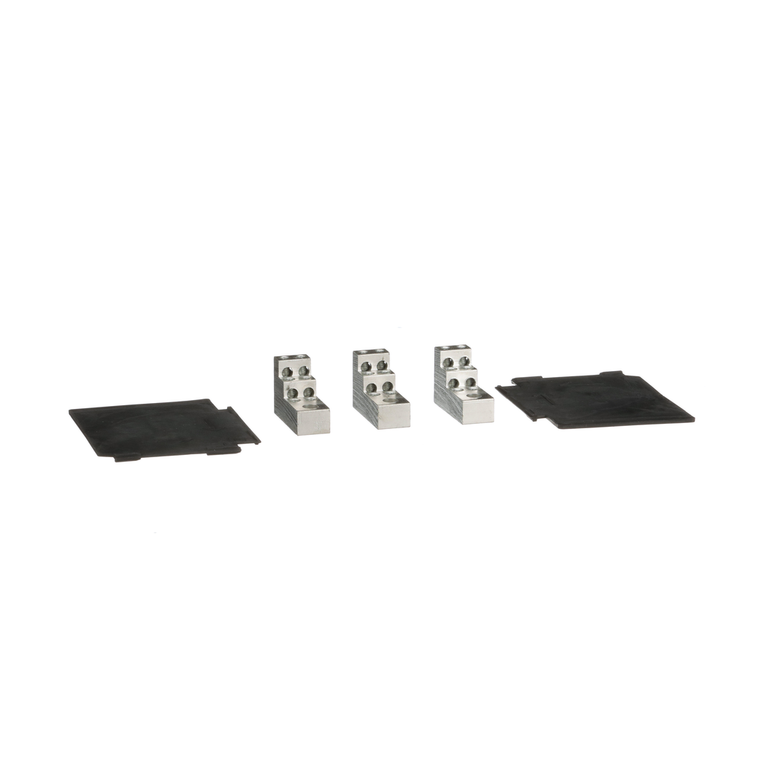

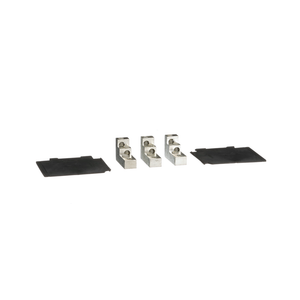

Schneider Electric PDC6BD6 Cb Power Distribuition Connector 6W 3
Schneider Electric
$175.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric PDC6BD6 Cb Power Distribuition Connector 6W 3
Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations PowerPact B-frame circuit breakers provides economical thermal-magnetic circuit protection in a compact size Power distribution connectors can be used for multiple load wire connections on one circuit breaker in place of standard distribution block to save space and time. The connectors are attached to circuit breaker terminals equipped with separately provided terminal nut connectors. This power distribution connectors are used for PowerPact B-frame breakers with current rating up to 125A and has height as 1in. Kit contents mounting hardware and lugs, comes as 3 pieces in kit. Wire terminal data is performed as (6) AWG 14 - AWG 6
- Provided Equipment:
- interphase barriers
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1407012EN
- Quantity Per Set:
- set of 3
- Line Rated Current:
- 15-125 A
- Pvc Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- cable connector
- Mercury Free:
- Yes
- Accessory / Separate Part Type:
- connection kit
- Conductor Material:
- aluminium || copper
- Sustainable Offer Status:
- Green Premium product
- Connections - Terminals:
- screw terminal 2.5-16 mm² AWG 14...AWG 6)
- Circularity Profile:
- ENVEOLI1407012EN
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
