Schneider Electric PGA36080U44A Molded Case Circuit Breaker 600V 800A
Schneider Electric
$19,607.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

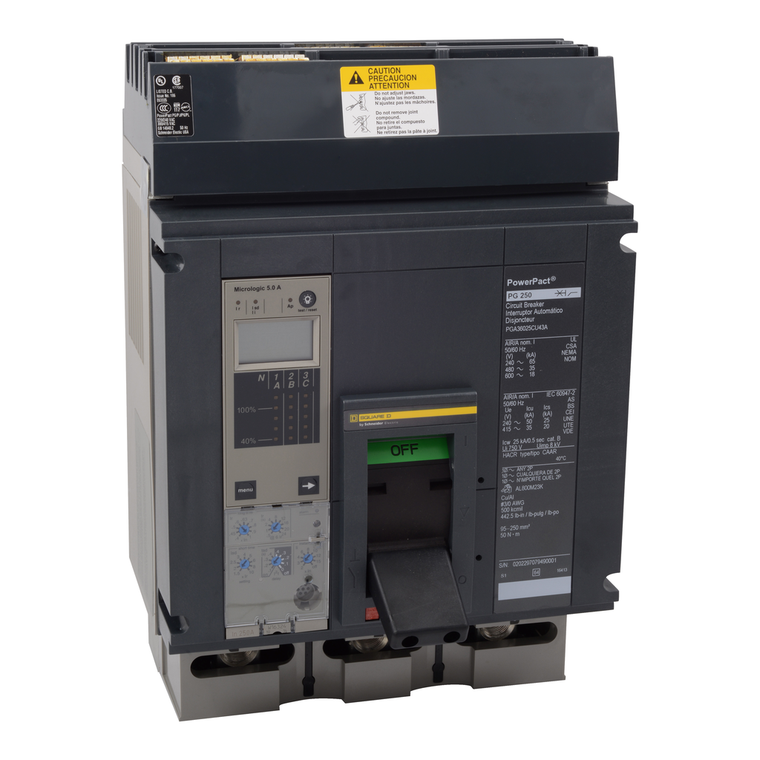

Schneider Electric PGA36080U44A Molded Case Circuit Breaker 600V 800A
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Application:
- HACR rated
- Line Rated Current:
- 800-800 A
- Range:
- PowerPact
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mercury Free:
- Yes
- Pollution Degree:
- 3 IEC 60947-1
- Continuous Current Rating:
- 0.8
- Control Type:
- toggle
- Local Signalling:
- overload 1 1 LED amber) || 1 flag green) || trip causes 4 trip indicator red)
- Net Weight:
- 32 lb(US)
- Mounting Mode:
- I-Line bracket)
- Mounting Support:
- bracket
- Network Frequency:
- 50/60 Hz
- Depth:
- 8.05 in
- Warranty:
- 18 months
- Awg Gauge:
- 3 x AWG 3/0...500 kcmil aluminium/copper
- Quality Labels:
- CE
- Environmental Disclosure:
- ENVPEP2206033EN
- Width:
- 8.27 in
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Terminal Identifier:
- AL800M23K
- Tightening Torque:
- 50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
- Eu Rohs Directive:
- Compliant with Exemptions
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz UL 489
- Phase Connection:
- ABC
- Mounting Height:
- 9 in
- Long Time Pick-Up Adjustment Range:
- 0.4...1 x Ir
- Ambient Air Temperature For Storage:
- -50-85 °C
- Ambient Air Temperature For Operation:
- -2-70 °C
- Poles Description:
- 3P
- Breaking Capacity Code:
- G
- Breaking Capacity:
- AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- I-Line connection, line || lugs, load
- Wire Stripping Length:
- 25 mm
- Device Application:
- distribution
- Product Name:
- PowerPact P
- Pvc Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40
- Trip Unit Name:
- MicroLogic 6.0 A
- [Ics] Rated Service Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Trip Unit Technology:
- electronic, ammeter, MicroLogic 6.0 A, LSIG
- Quantity Per Set:
- 1
- Product Or Component Type:
- circuit breaker
- Product Certifications:
- UL || CSA || NOM
- Circularity Profile:
- ENVEOLI2206033EN
- Height:
- 12.86 in
- Rohs Exemption Information:
- Yes
