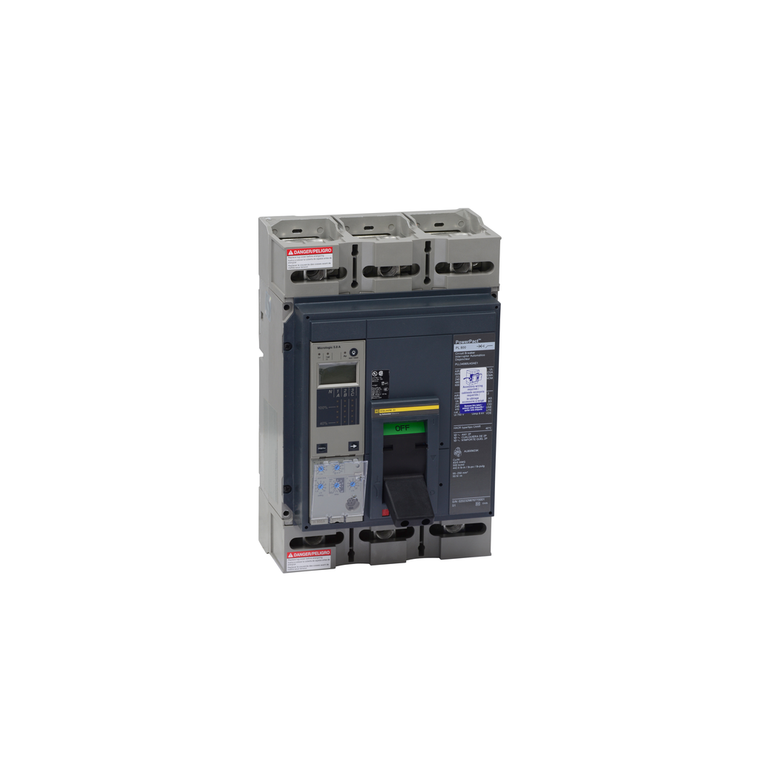

Schneider Electric PGL36060CU44A Molded Case Circuit Breaker 600V 600A

Schneider Electric PGL36060CU44A Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
PGL36060CU44A
|
UPC:
785901748175
Availability:
Factory stock
$25,256.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Pvc Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity Code:
G
Quality Labels:
CE
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Network Frequency:
50/60 Hz
Poles Description:
3P
Product Certifications:
UL || CSA || NOM
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Product Or Component Type:
circuit breaker
Range:
PowerPact
Depth:
8.05 in
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Line Rated Current:
600-600 A
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Sustainable Offer Status:
Green Premium product
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Continuous Current Rating:
1
Net Weight:
32 lb(US)
Mercury Free:
Yes
Circularity Profile:
ENVEOLI2206033EN
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Rohs Exemption Information:
Yes
Height:
12.86 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Product Name:
PowerPact P
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Terminal Identifier:
AL800M23K
Device Application:
distribution
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Local Signalling:
overload 1 1 LED amber) || 1 flag green) || trip causes 4 trip indicator red)
Wire Stripping Length:
25 mm
Width:
8.27 in
Pollution Degree:
3 IEC 60947-1
Trip Unit Name:
MicroLogic 6.0 A
Control Type:
toggle
Environmental Disclosure:
ENVPEP2206033EN
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Storage:
-50-85 °C
Quantity Per Set:
1
Warranty:
18 months
Ip Degree Of Protection:
front cover IP40
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Awg Gauge:
3 x AWG 3/0...500 kcmil aluminium/copper
Ambient Air Temperature For Operation:
-2-70 °C
Electrical Connection:
lugs, load || lugs, line
