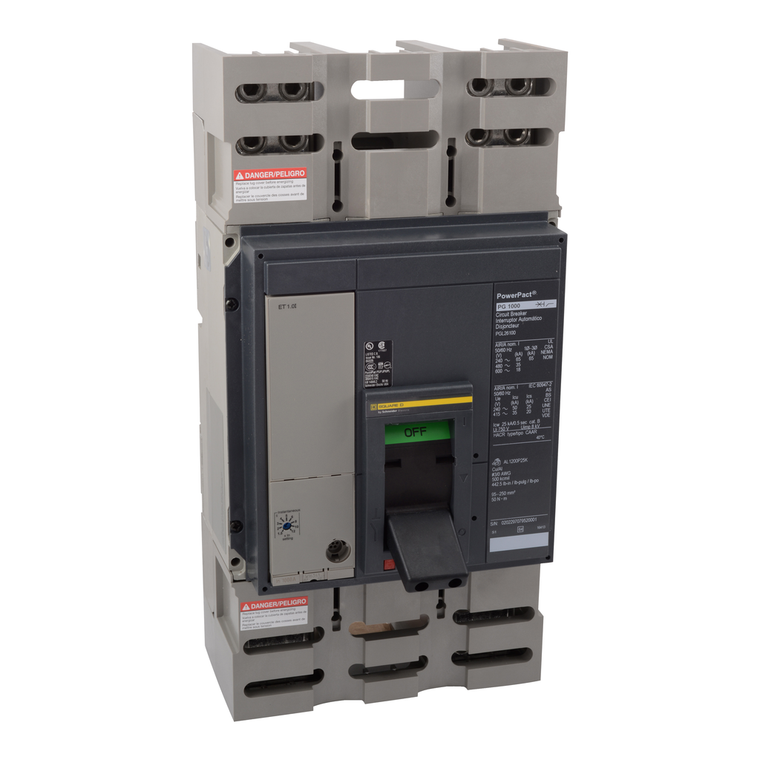

Schneider Electric PJL36100U33A Molded Case Circuit Breaker 600V 1000A

Schneider Electric PJL36100U33A Molded Case Circuit Breaker 600V 1000A

Schneider Electric
SKU:
PJL36100U33A
|
UPC:
3606482071001
Availability:
Factory stock
$21,378.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Utilisation Category:
category A
Line Rated Current:
1000-1000 A
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Continuous Current Rating:
0.8
Product Certifications:
UL || CSA || NOM
Warranty:
18 months
Ambient Air Temperature For Operation:
-2-70 °C
Pvc Free:
Yes
Product Name:
PowerPact P
Electrical Connection:
lugs, line || lugs, load
Pollution Degree:
3 IEC 60947-1
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Terminal Identifier:
AL1200P25K
Height:
16.16 in
Wire Stripping Length:
30 mm
Local Signalling:
overload 1 trip indicator green) || 1 trip indicator green)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Device Application:
distribution
Ambient Air Temperature For Storage:
-50-85 °C
Circularity Profile:
ENVEOLI2206033EN
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Poles Description:
3P
Ip Degree Of Protection:
front cover IP40
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Mounting Support:
lug
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Application:
HACR rated
Quality Labels:
CE
Quantity Per Set:
1
Trip Unit Name:
MicroLogic 5.0
Eu Rohs Directive:
Compliant with Exemptions
Product Or Component Type:
circuit breaker
Trip Unit Technology:
electronic, standard, MicroLogic 5.0, LSI
Suitability For Isolation:
yes IEC 60947-2
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Net Weight:
32 lb(US)
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Mounting Mode:
unit mount lug)
Sustainable Offer Status:
Green Premium product
Depth:
8.05 in
Control Type:
toggle
Network Frequency:
50/60 Hz
Environmental Disclosure:
ENVPEP2206033EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range:
PowerPact
Width:
8.27 in
Breaking Capacity Code:
J
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Rohs Exemption Information:
Yes
