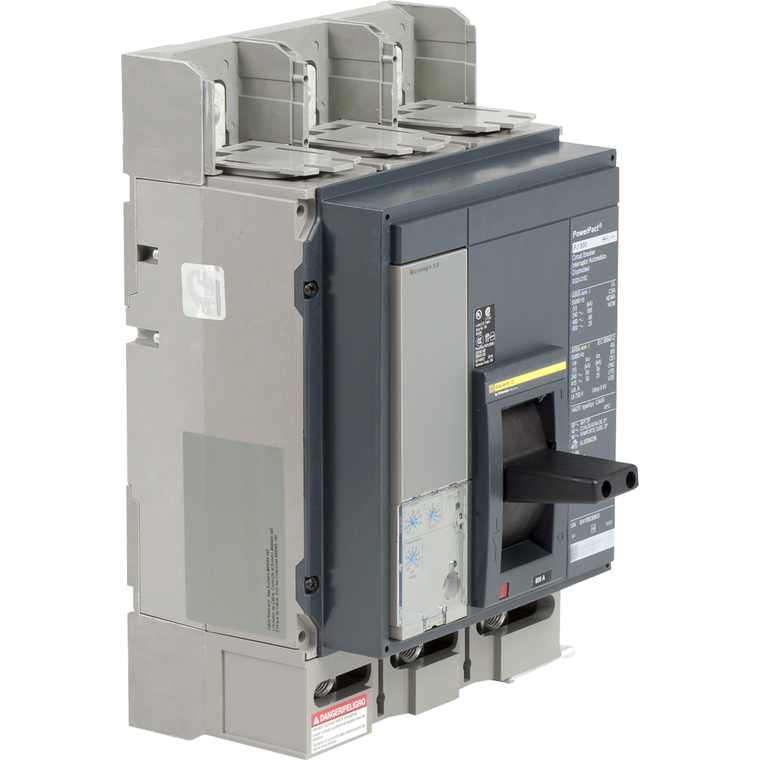

Schneider Electric PJP36080CU31A Molded Case Circuit Breaker 600V 800A

(No reviews yet) Write a Review
SKU:
PJP36080CU31A
UPC:
3606486285718
Condition:
New
Rohs Exemption Information:
Yes
Control Type:
toggle
Awg Gauge:
3 x AWG 3/0...500 kcmil aluminium/copper
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Breaking Capacity Code:
J
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Height:
12.86 in
Depth:
8.05 in
Device Application:
distribution
Ambient Air Temperature For Storage:
-50-85 °C
Pollution Degree:
3 IEC 60947-1
Local Signalling:
overload 1 1 LED amber) || 1 trip indicator green)
Range:
PowerPact
Product Or Component Type:
circuit breaker
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Environmental Disclosure:
ENVPEP2206033EN
Pvc Free:
Yes
Wire Stripping Length:
25 mm
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Terminal Identifier:
AL800M23K
Electrical Connection:
terminal nut, line || lugs, load
Ip Degree Of Protection:
front cover IP40
Product Name:
PowerPact P
Poles Description:
3P
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circuit Breaker Application:
HACR rated
Warranty:
18 months
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Mounting Support:
lug
Ambient Air Temperature For Operation:
-2-70 °C
Quantity Per Set:
1
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
8.27 in
Trip Unit Name:
MicroLogic 3.0
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Network Frequency:
50/60 Hz
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Mounting Mode:
unit mount lug)
Circularity Profile:
ENVEOLI2206033EN
Quality Labels:
CE
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Eu Rohs Directive:
Compliant with Exemptions
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Line Rated Current:
800-800 A
Product Certifications:
UL || CSA || NOM
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Continuous Current Rating:
1
Net Weight:
32 lb(US)
Brochure:
View
Catalog:
View
Datasheet:
View
$22,868.00

Description

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
