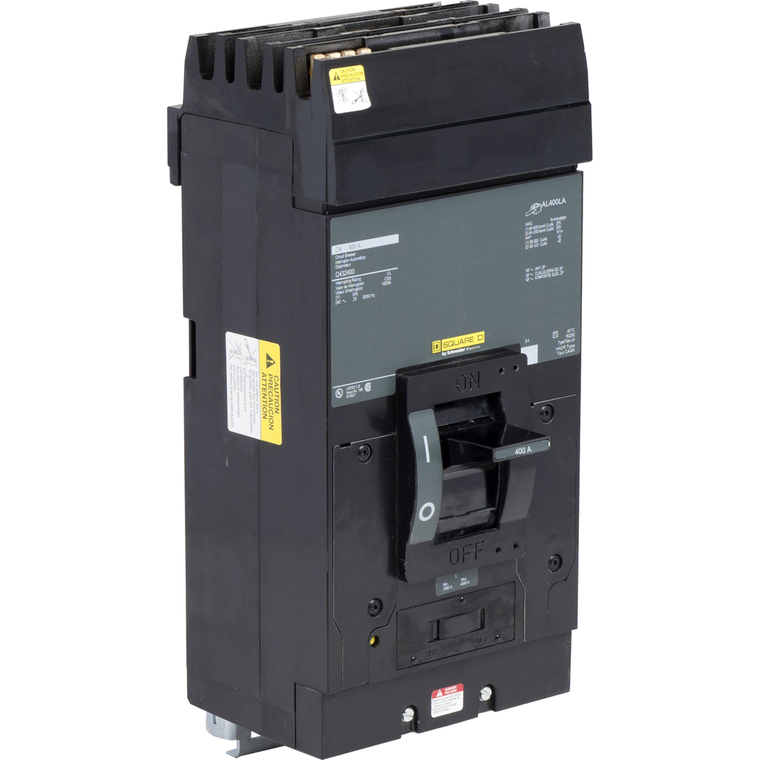

Schneider Electric Q432400 Molded Case Circuit Breaker 240V 400A
Schneider Electric
$4,313.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Circuit breaker, Q4, 400A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 5.84 in
- Terminal Identifier:
- AL400LA
- Line Rated Current:
- 400 A
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Height:
- 11 in
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Mode:
- I-Line
- Breaking Capacity Code:
- Q4
- Poles Description:
- 3P
- Width:
- 6 in
- Sustainable Offer Status:
- Green Premium product
- Magnetic Hold Current:
- 2000 A
- Electrical Connection:
- lugs, load || I-Line connection, line
- Product Certifications:
- UL Listed || CSA
- Circularity Profile:
- N/A
- Tightening Torque:
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Trip Unit Technology:
- thermal-magnetic
- Pvc Free:
- Yes
- Halogen Content Performance:
- Halogen free plastic parts product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1410004EN
- Warranty:
- 18 months
- Magnetic Tripping Current:
- 4000-4000 A
- Product Or Component Type:
- circuit breaker
- Catalog:
- View
- Datasheet:
- View
