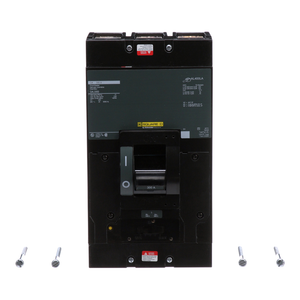

Schneider Electric Q4L2300 Molded Case Circuit Breaker 240V 300A

(No reviews yet) Write a Review
SKU:
Q4L2300
UPC:
785901649229
Condition:
New
Depth:
5.84 in
Magnetic Tripping Current:
3000-3000 A
Terminal Identifier:
AL400LA
Halogen Content Performance:
Halogen free plastic parts product
Circularity Profile:
N/A
Warranty:
18 months
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity Code:
Q4
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Magnetic Hold Current:
1500 A
Mounting Mode:
unit mount
Pvc Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Poles Description:
2P
Tightening Torque:
42-42 N.m 50-300 mm² (AWG 1...600 kcmil) || 42-42 N.m 50-120 mm² (AWG 1...250 kcmil)
Rohs Exemption Information:
Yes
Electrical Connection:
lugs, load || lugs, line
Product Or Component Type:
circuit breaker
Environmental Disclosure:
ENVPEP1410004EN
Height:
11 in
Product Certifications:
UL Listed || IEC || CSA
Line Rated Current:
300 A
Mercury Free:
Yes
Trip Unit Technology:
thermal-magnetic
Width:
6 in
Sustainable Offer Status:
Green Premium product
Catalog:
View
Datasheet:
View
  • Schneider Electric Q4L2300 Molded Case Circuit Breaker 240V 300A
  • Schneider Electric Q4L2300 Molded Case Circuit Breaker 240V 300A
  • Schneider Electric Q4L2300 Molded Case Circuit Breaker 240V 300A
$3,171.00

Description

Square D Q4 molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. Q4 circuit breakers can be used for multiple applications such as construction, in commercial and industrial buildings, for control equipment panels for OEM commercial, and in mines. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This 2 pole unit mount circuit breaker is equipped with a thermal magnetic trip unit with rated current of 300A and voltage of 240VAC. The breaker has an interrupting rating of 25kA at 240VAC and is provided with UL listed mechanical lugs. All Q4 molded case circuit breakers have trip indication of the operating handle in the central position when the breaker is tripped. Q4 breakers are UL 489, CSA, IEC certified.
