Schneider Electric QBA222002 Molded Case Circuit Breaker 240V 200A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 200A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Product Certifications:
- UL || CSA || NOM
- Sustainable Offer Status:
- Green Premium product
- Breaking Capacity:
- 10 kA 120/208 V AC 50/60 Hz UL || 10 kA 240 V AC 50/60 Hz UL
- Breaking Capacity Code:
- B
- Phase Connection:
- AC
- Eu Rohs Directive:
- Compliant with Exemptions
- Circularity Profile:
- N/A
- Magnetic Hold Current:
- 1200 A
- Mercury Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1406032EN
- Device Application:
- distribution
- Local Signalling:
- 1 trip indicator green)
- Mounting Mode:
- I-Line bracket)
- Control Type:
- operating handle
- Pvc Free:
- Yes
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Poles Description:
- 2P
- Magnetic Tripping Current:
- 2400-2400 A
- Utilisation Category:
- category A
- Line Rated Current:
- 200 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ambient Air Temperature For Operation:
- 40-70 °C
- Network Frequency:
- 50/60 Hz
- Continuous Current Rating:
- 0.8
- Mounting Height:
- 3 in
- Warranty:
- 18 months
- Line Rated Current:
- 200-200 A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- Halogen Content Performance:
- Halogen free product
- Circuit Breaker Application:
- HACR rated
- Product Or Component Type:
- circuit breaker
- Range:
- PowerPact
- Mounting Support:
- bracket
- Width:
- 3.00 in
- Product Name:
- PowerPact Q
- Depth:
- 3.93 in
- Wire Stripping Length:
- 22 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Trip Unit Technology:
- thermal-magnetic
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- I-Line connection, line || lugs, load
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Height:
- 6.47 in
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
Related Products
-
-
Schneider Electric QGA222001 Molded Case Circuit Breaker 240V 200A
Schneider Electric
-

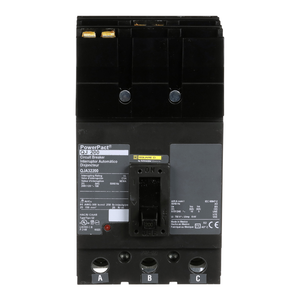

Schneider Electric QJA32200 Molded Case Circuit Breaker 240V 200A
