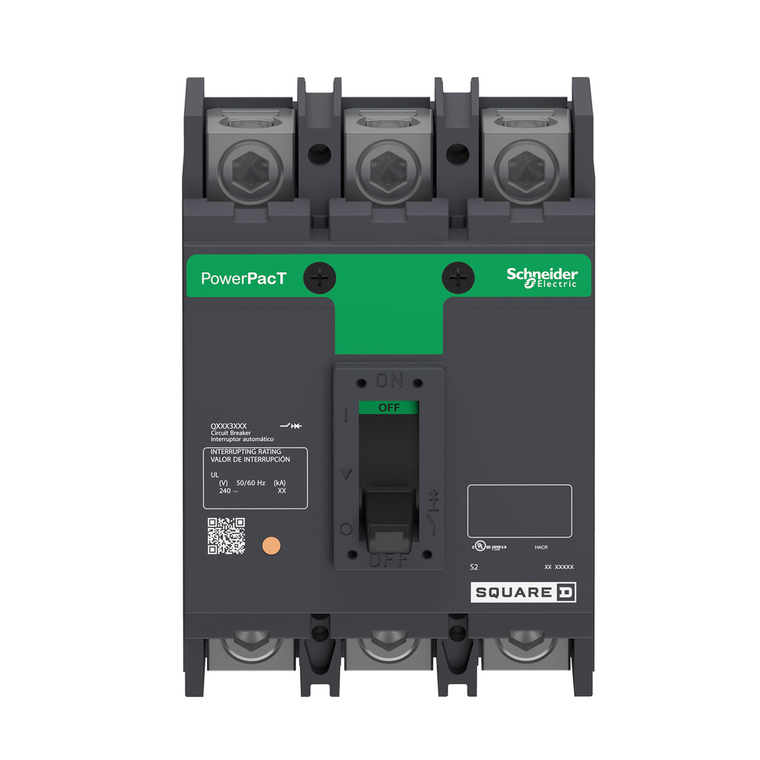

Schneider Electric QBL32225 Molded Case Circuit Breaker 240V 225A
Schneider Electric
$1,248.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 225A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Mounting Mode:
- unit mount lug)
- Ambient Air Temperature For Operation:
- 40-70 °C
- Height:
- 6.47 in
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Trip Unit Technology:
- thermal-magnetic
- Halogen Content Performance:
- Halogen free product
- Environmental Disclosure:
- ENVPEP1406032EN
- Rohs Exemption Information:
- Yes
- Product Name:
- PowerPact Q
- Utilisation Category:
- category A
- Continuous Current Rating:
- 0.8
- Sustainable Offer Status:
- Green Premium product
- Line Rated Current:
- 225 A
- Magnetic Hold Current:
- 1200 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Circularity Profile:
- N/A
- Magnetic Tripping Current:
- 2400-2400 A
- Line Rated Current:
- 225-225 A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Local Signalling:
- 1 trip indicator green)
- Pvc Free:
- Yes
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
- Product Certifications:
- UL || CSA || NOM
- Wire Stripping Length:
- 22 mm
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- Network Frequency:
- 50/60 Hz
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Mercury Free:
- Yes
- Mounting Support:
- lug
- Breaking Capacity:
- 10 kA 120/208 V AC 50/60 Hz UL || 10 kA 240 V AC 50/60 Hz UL
- Poles Description:
- 3P
- Depth:
- 3.93 in
- Range:
- PowerPact
- Product Or Component Type:
- circuit breaker
- Control Type:
- operating handle
- Device Application:
- distribution
- Circuit Breaker Application:
- HACR rated
- Width:
- 4.5 in
- Breaking Capacity Code:
- B
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Electrical Connection:
- lugs, load || lugs, line
- Warranty:
- 18 months
