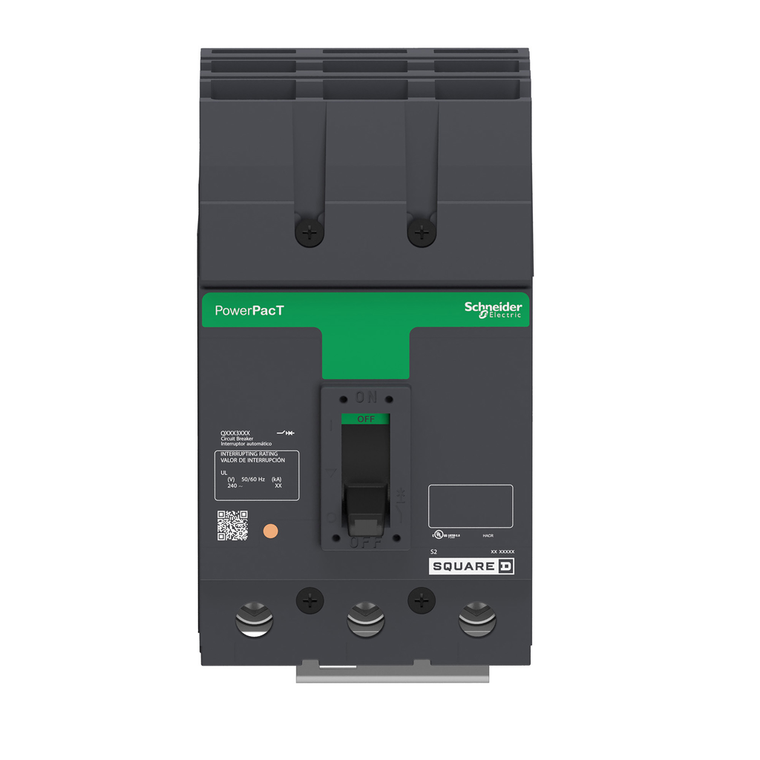

Schneider Electric QDA32070 Molded Case Circuit Breaker 240V 70A
Schneider Electric
$2,069.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 70A, 3 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Poles Description:
- 3P
- Circuit Breaker Application:
- HACR rated
- Phase Connection:
- ABC
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Height:
- 6.47 in
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Control Type:
- operating handle
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Electrical Connection:
- I-Line connection, line || lugs, load
- Device Application:
- distribution
- Circularity Profile:
- N/A
- Mounting Support:
- bracket
- Continuous Current Rating:
- 0.8
- Local Signalling:
- 1 trip indicator green)
- Product Or Component Type:
- circuit breaker
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Depth:
- 3.93 in
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
- Pvc Free:
- Yes
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Range:
- PowerPact
- Environmental Disclosure:
- ENVPEP1406032EN
- Sustainable Offer Status:
- Green Premium product
- Magnetic Hold Current:
- 1000 A
- Magnetic Tripping Current:
- 1800-1800 A
- Warranty:
- 18 months
- Mounting Height:
- 4.5 in
- Breaking Capacity Code:
- D
- Product Certifications:
- UL || CSA || NOM
- Breaking Capacity:
- 25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
- Utilisation Category:
- category A
- Width:
- 4.5 in
- Line Rated Current:
- 70 A
- Mercury Free:
- Yes
- Network Frequency:
- 50/60 Hz
- Product Name:
- PowerPact Q
- Halogen Content Performance:
- Halogen free product
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- Eu Rohs Directive:
- Compliant with Exemptions
- Mounting Mode:
- I-Line bracket)
- Trip Unit Technology:
- thermal-magnetic
- Wire Stripping Length:
- 22 mm
- Ambient Air Temperature For Operation:
- 40-70 °C
- Rohs Exemption Information:
- Yes
- Line Rated Current:
- 70-70 A
