Schneider Electric QDL32100 Molded Case Circuit Breaker 240V 100A
Schneider Electric
$1,784.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

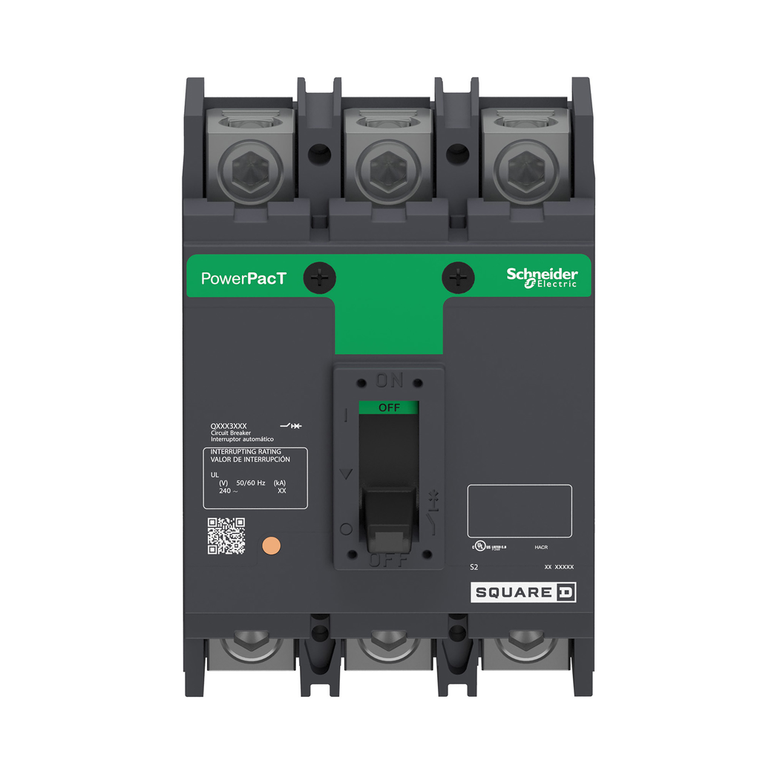

Schneider Electric QDL32100 Molded Case Circuit Breaker 240V 100A
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 100A, 3 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Circularity Profile:
- N/A
- Continuous Current Rating:
- 0.8
- Line Rated Current:
- 100-100 A
- Product Name:
- PowerPact Q
- Width:
- 4.5 in
- Electrical Connection:
- lugs, load || lugs, line
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Support:
- lug
- Magnetic Hold Current:
- 1200 A
- Control Type:
- operating handle
- Range:
- PowerPact
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- Network Frequency:
- 50/60 Hz
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- circuit breaker
- Wire Stripping Length:
- 22 mm
- Warranty:
- 18 months
- Depth:
- 3.93 in
- Breaking Capacity Code:
- D
- Mounting Mode:
- unit mount lug)
- Halogen Content Performance:
- Halogen free product
- Height:
- 6.47 in
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL || CSA || NOM
- Circuit Breaker Application:
- HACR rated
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Device Application:
- distribution
- Mercury Free:
- Yes
- Poles Description:
- 3P
- Utilisation Category:
- category A
- Ambient Air Temperature For Operation:
- 40-70 °C
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
- Breaking Capacity:
- 25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
- Magnetic Tripping Current:
- 2400-2400 A
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Local Signalling:
- 1 trip indicator green)
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 100 A
- Trip Unit Technology:
- thermal-magnetic
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pvc Free:
- Yes
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Environmental Disclosure:
- ENVPEP1406032EN
