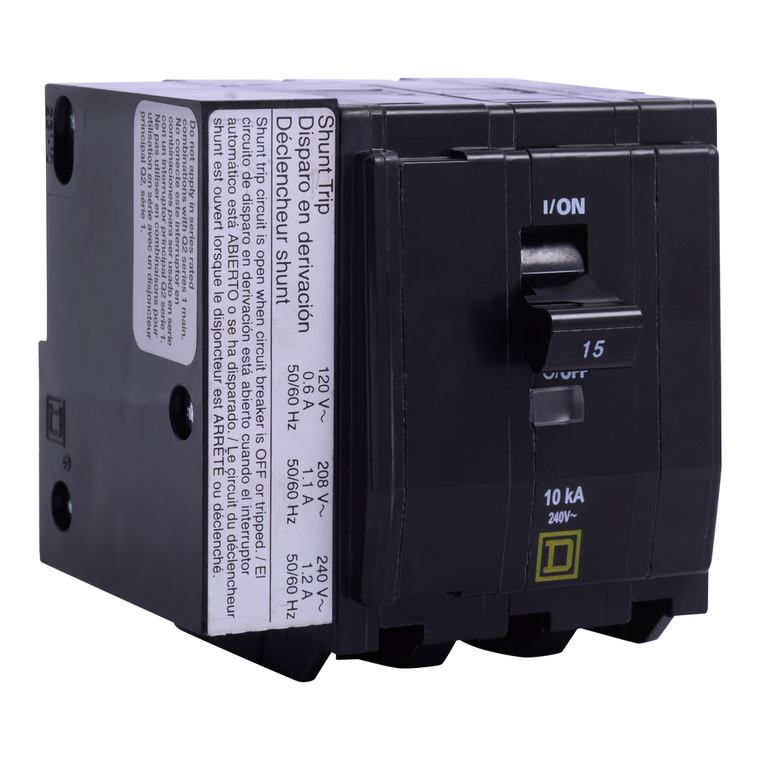

Schneider Electric QHB3201021 Miniature Circuit Breaker 240V 20A
Schneider Electric
$1,177.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QHB3201021 Miniature Circuit Breaker 240V 20A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 65kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Warranty:
- 18 months
- Product Certifications:
- UL Listed || CSA
- Electrical Connection:
- pressure plate
- Product Or Component Type:
- miniature circuit-breaker
- Mounting Mode:
- bolt-on
- Width:
- 76 mm
- Accessory / Separate Part Type:
- shunt trip 120/208/240 V AC
- Mercury Free:
- Yes
- Circuit Breaker Type:
- standard
- Eu Rohs Directive:
- Compliant with Exemptions
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- QO
- Tightening Torque:
- 4.6-4.6 N.m
- Line Rated Current:
- 20 A
- Height:
- 76 mm
- Circuit Breaker Application:
- HACR rated
- Depth:
- 74 mm
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Circularity Profile:
- N/A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Spaces Required:
- 4
- Ambient Air Temperature For Operation:
- 40 °C
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.544 kg
- Poles Description:
- 3P
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Breaking Capacity:
- 65 kA 120/240 V AC 50/60 Hz || 65 kA 240 V AC 50/60 Hz || 65 kA 120 V AC 50/60 Hz
- Halogen Content Performance:
- Halogen free product
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
