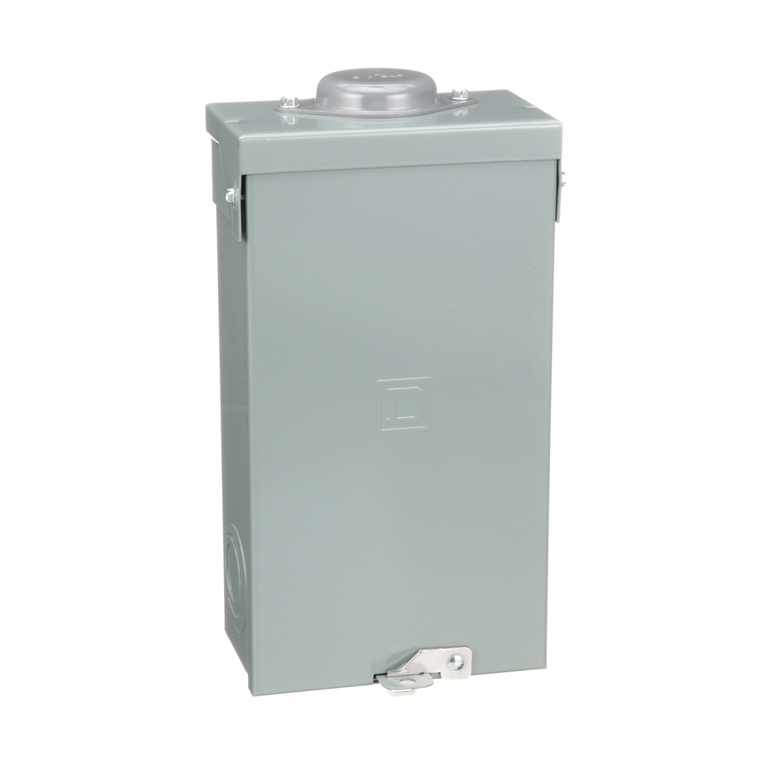

Schneider Electric QO3100BNRB Load Center Qo Cb 240V 100A Nema 3R
Schneider Electric
$207.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QO3100BNRB Load Center Qo Cb 240V 100A Nema 3R
QO® Circuit Breaker Load Centers, QO3100BNRB, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP2212001
- Number Of Tandem Circuit Breakers:
- 0
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Width:
- 176 mm
- Load Center Type:
- main lugs
- Device Composition:
- grounding bar (ordered separately)
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -5 °C || 40 °C
- Range Of Product:
- QO
- Cover Type:
- surface cover
- Enclosure Type:
- enclosure
- Height:
- 335 mm
- Box Number:
- 10R
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Certifications:
- UL Listed || CSA
- Mercury Free:
- Yes
- Product Or Component Type:
- enclosure
- Line Rated Current:
- 100 A
- Rohs Exemption Information:
- Yes
- Depth:
- 4.12 in
- Eu Rohs Directive:
- Compliant
- Enclosure Material:
- welded galvannealed steel
- Circularity Profile:
- N/A
- Number Of Spaces:
- 3
- Phase:
- 3 phase
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
-
-
-
