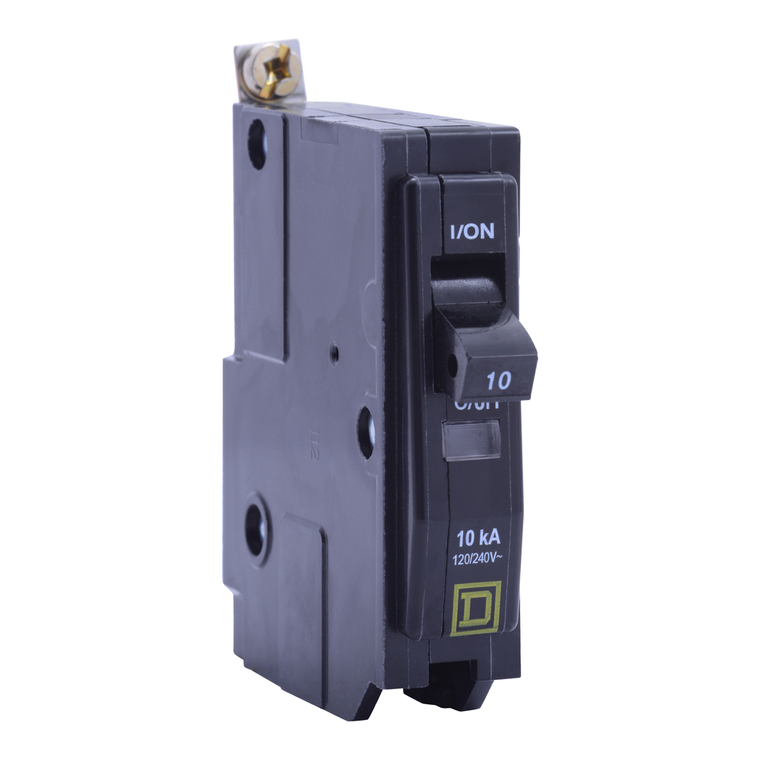

Schneider Electric QOB110FT Miniature Circuit Breaker 120/240V 10A
Schneider Electric
$46.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB110FT Miniature Circuit Breaker 120/240V 10A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 10A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Rohs Exemption Information:
- Yes
- Halogen Content Performance:
- Halogen free product
- Circularity Profile:
- N/A
- Tightening Torque:
- 4-4 N.m
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circuit Breaker Type:
- standard
- Circuit Breaker Application:
- HACR rated
- Line Rated Current:
- 0.416666666666667
- Product Certifications:
- UL Listed || CSA
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Number Of Spaces Required:
- 1
- Ambient Air Temperature For Operation:
- 40 °C
- Range Of Product:
- QO
- Electrical Connection:
- pressure plate
- Depth:
- 74 mm
- Net Weight:
- 0.145 kg
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Sustainable Offer Status:
- Green Premium product
- Height:
- 76 mm
- Mounting Mode:
- bolt-on
- Warranty:
- 18 months
- Width:
- 19 mm
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Mercury Free:
- Yes
- Product Or Component Type:
- miniature circuit-breaker
- Poles Description:
- 1P
- Brochure:
- View
- Datasheet:
- View
