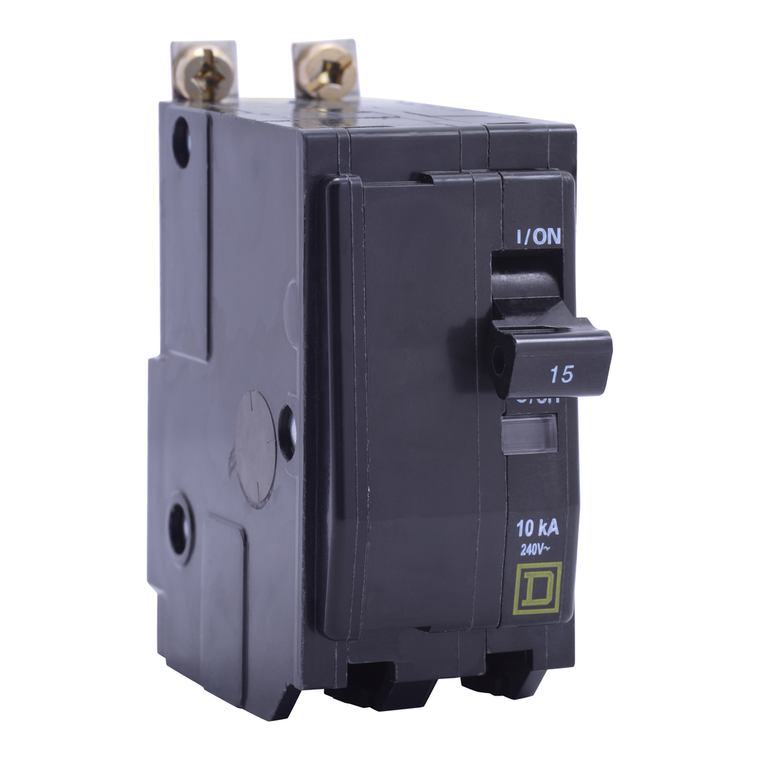

Schneider Electric QOB215H Miniature Circuit Breaker 240V 15A
Schneider Electric
$240.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB215H Miniature Circuit Breaker 240V 15A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 15A at 240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Tightening Torque:
- 5.6-5.6 N.m
- Circuit Breaker Type:
- standard
- Circuit Breaker Application:
- HACR rated
- Poles Description:
- 2P
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- pressure plate
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range Of Product:
- QO
- Height:
- 76 mm
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- miniature circuit-breaker
- Ambient Air Temperature For Operation:
- 40 °C
- Line Rated Current:
- 15 A
- Warranty:
- 18 months
- Product Certifications:
- UL Listed || CSA
- Number Of Spaces Required:
- 2
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- N/A
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Mounting Mode:
- bolt-on
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Depth:
- 74 mm
- Net Weight:
- 0.263 kg
- Mercury Free:
- Yes
- Width:
- 38 mm
- Toxic Heavy Metal Free:
- Yes
- Halogen Content Performance:
- Halogen free product
