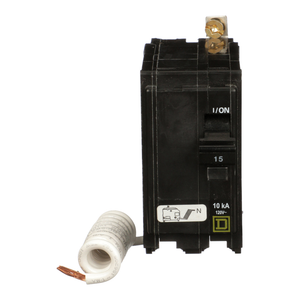

Schneider Electric QOB215SWN1021 Miniature Circuit Breaker 120V 15A
Schneider Electric
$305.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB215SWN1021 Miniature Circuit Breaker 120V 15A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a switch neutral and AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Net Weight:
- 0.454 kg
- Toxic Heavy Metal Free:
- Yes
- Tightening Torque:
- 4-4 N.m
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive:
- Compliant with Exemptions
- Circuit Breaker Type:
- switch neutral
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 74 mm
- Electrical Connection:
- pressure plate
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Poles Description:
- 2P
- Height:
- 76 mm
- Range Of Product:
- QO
- Accessory / Separate Part Type:
- shunt trip 120/208/240 V AC
- Breaking Capacity:
- 10 kA 120 V AC 50/60 Hz
- Ambient Air Temperature For Operation:
- 40 °C
- Mercury Free:
- Yes
- Product Certifications:
- UL Listed || CSA
- Width:
- 57 mm
- Product Or Component Type:
- miniature circuit-breaker
- Halogen Content Performance:
- Halogen free product
- Circuit Breaker Application:
- not rated
- [Ue] Rated Operational Voltage:
- 120 V AC
- Mounting Mode:
- bolt-on
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Number Of Spaces Required:
- 3
- Line Rated Current:
- 15 A
