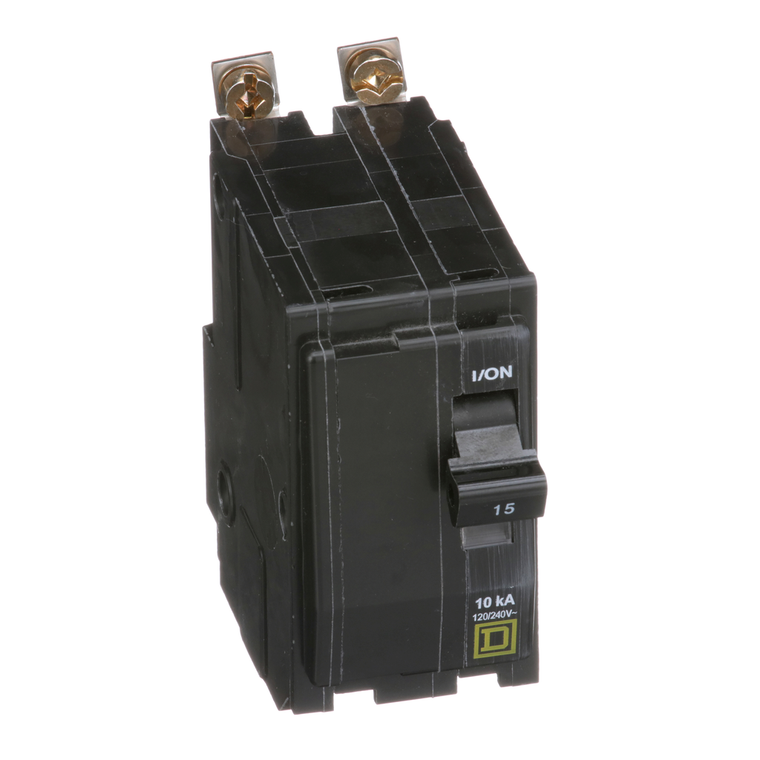

Schneider Electric QOB215VHFT Miniature Circuit Breaker 240V 15A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Range Of Product:
- QO
- Width:
- 38 mm
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Ambient Air Temperature For Operation:
- 40 °C
- Circuit Breaker Type:
- standard
- Electrical Connection:
- pressure plate
- Net Weight:
- 0.268 kg
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Application:
- HACR rated
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- UL Listed || CSA
- Tightening Torque:
- 5.6-5.6 N.m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Mode:
- bolt-on
- Poles Description:
- 2P
- Eu Rohs Directive:
- Compliant with Exemptions
- Height:
- 76 mm
- Depth:
- 74 mm
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Product Or Component Type:
- miniature circuit-breaker
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Rohs Exemption Information:
- Yes
- Number Of Spaces Required:
- 2
- Mercury Free:
- Yes
- Line Rated Current:
- 15 A
