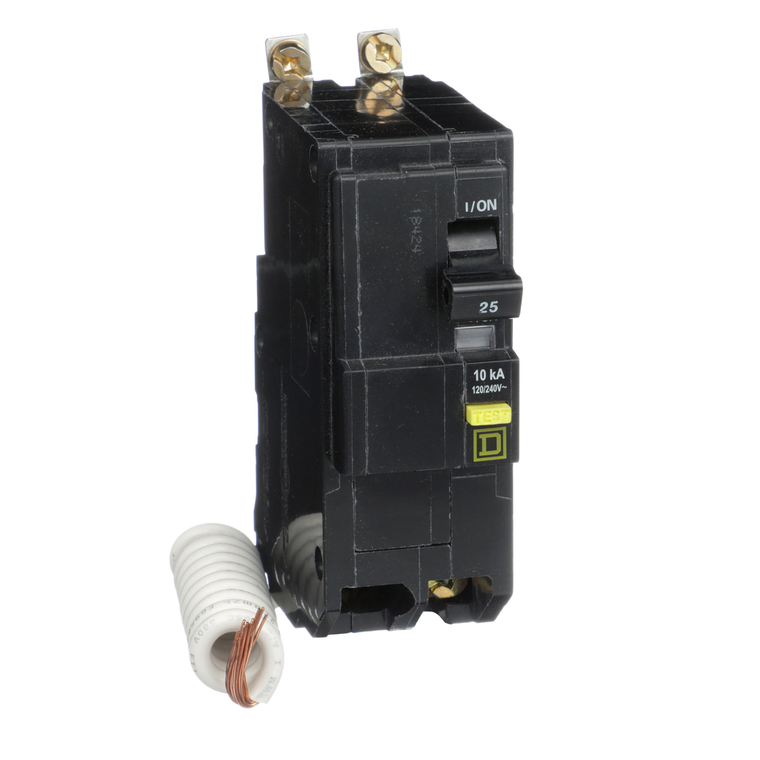

Schneider Electric QOB225GFI Miniature Circuit Breaker 120/240V 25A
Schneider Electric
$444.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Warranty:
- 18 months
- Product Certifications:
- UL Listed || CSA
- Circularity Profile:
- ENVEOLI2212005
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- pressure plate
- Mercury Free:
- Yes
- Poles Description:
- 2P
- Width:
- 38 mm
- Circuit Breaker Application:
- not rated
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP2212005
- Circuit Breaker Type:
- ground fault protecting class A 6 mA
- Height:
- 116 mm
- Product Or Component Type:
- miniature circuit-breaker
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- 40 °C
- Depth:
- 74 mm
- Line Rated Current:
- 25 A
- Net Weight:
- 0.435 kg
- Tightening Torque:
- 4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Range Of Product:
- QO
- Number Of Spaces Required:
- 2
- Mounting Mode:
- bolt-on
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Awg Gauge:
- AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
