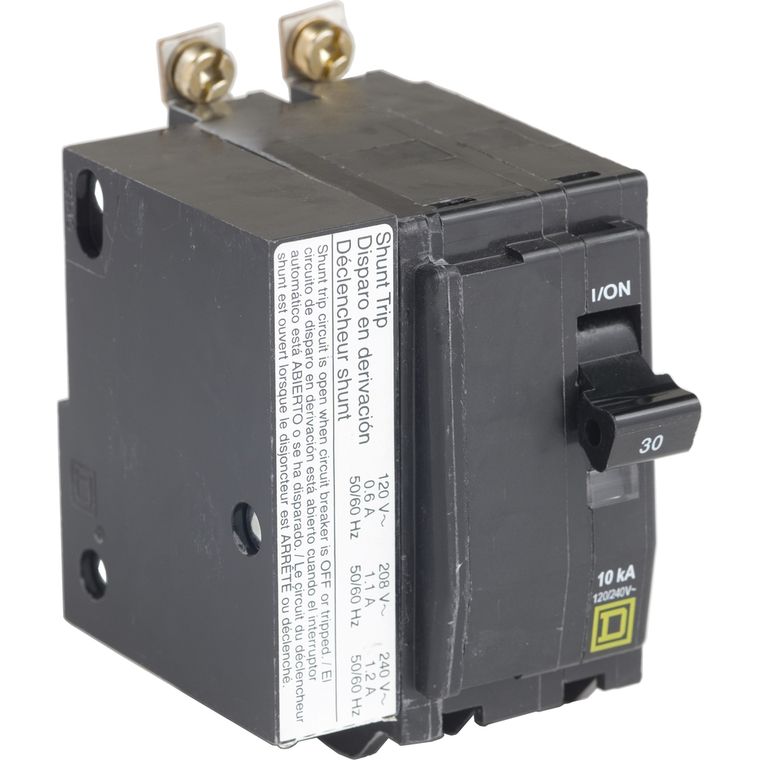

Schneider Electric QOB230VH1021 Miniature Circuit Breaker 240V 30A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Depth:
- 74 mm
- Line Rated Current:
- 30 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Halogen Content Performance:
- Halogen free product
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Toxic Heavy Metal Free:
- Yes
- Poles Description:
- 2P
- Circuit Breaker Type:
- standard
- Accessory / Separate Part Type:
- shunt trip 120/208/240 V AC
- Product Or Component Type:
- miniature circuit-breaker
- Sustainable Offer Status:
- Green Premium product
- Height:
- 76 mm
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Net Weight:
- 0.413 kg
- Number Of Spaces Required:
- 3
- Width:
- 57 mm
- Rohs Exemption Information:
- Yes
- Range Of Product:
- QO
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Product Certifications:
- UL Listed || CSA
- Circuit Breaker Application:
- HACR rated
- Tightening Torque:
- 4.6-4.6 N.m
- Circularity Profile:
- N/A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Electrical Connection:
- pressure plate
- Mounting Mode:
- bolt-on
- Ambient Air Temperature For Operation:
- 40 °C
