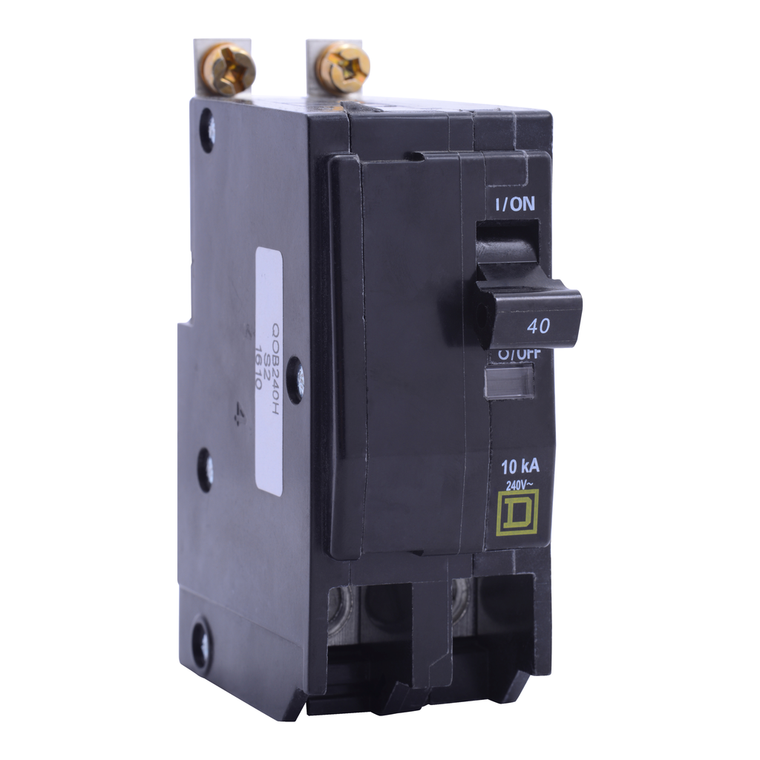

Schneider Electric QOB240H35 Miniature Circuit Breaker 240V 40A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 40A at 240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product is rated for operation at 50 degrees C. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Mounting Mode:
- bolt-on
- Line Rated Current:
- 40 A
- Net Weight:
- 0.286 kg
- Tightening Torque:
- 5.6-5.6 N.m
- Circuit Breaker Application:
- HACR rated
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL Listed || CSA
- Depth:
- 74 mm
- Number Of Spaces Required:
- 2
- Circuit Breaker Type:
- standard
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Ambient Air Temperature For Operation:
- 50 °C
- Poles Description:
- 2P
- Range Of Product:
- QO
- Electrical Connection:
- box lugs
- Width:
- 38 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- miniature circuit-breaker
- Height:
- 79 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
