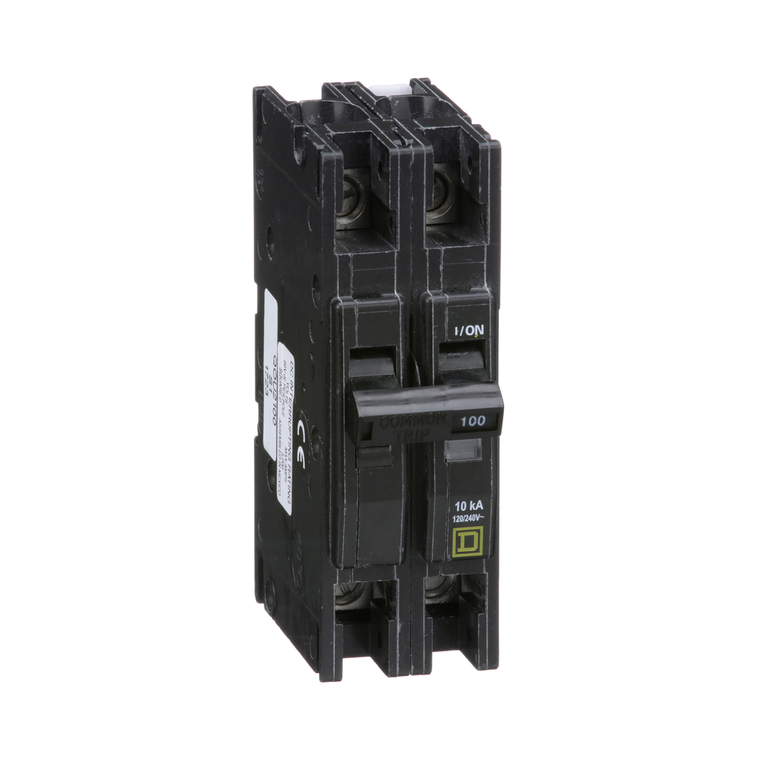

Schneider Electric QOU2100 Miniature Circuit Breaker 120/240V 100A
Schneider Electric
$258.89
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOU Miniature Circuit Breakers, QOU2100, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
- Product Certifications:
- CSA || UL Listed || IEC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Application:
- HACR rated
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Width:
- 1.5 in
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 60 V DC
- Warranty:
- 18 months
- Range Of Product:
- QOU
- Tightening Torque:
- 45-45 lbf.in (AWG 12...AWG 2/0)
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Mounting Mode:
- unit mount
- Height:
- 4.45 in
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Depth:
- 2.95 in
- Halogen Content Performance:
- Halogen free product
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium/copper
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Type:
- standard
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 100 A
- Product Or Component Type:
- miniature circuit-breaker
- Rohs Exemption Information:
- Yes
