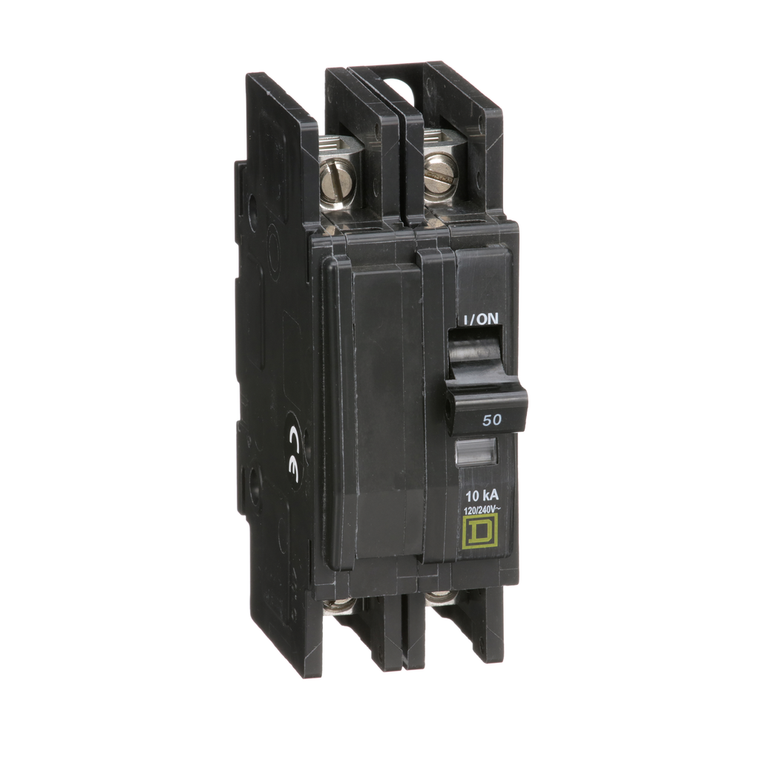

Schneider Electric QOU250B Miniature Circuit Breaker 120/240V 50A Pack of 20
Schneider Electric
$1,756.80
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOU250B Miniature Circuit Breaker 120/240V 50A Pack of 20
QO and QOU Miniature Circuit Breakers, QOU250B, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Distributes in a Bulk packing.
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Height:
- 4.05 in
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Toxic Heavy Metal Free:
- Yes
- Line Rated Current:
- 50 A
- Range Of Product:
- QOU
- Product Certifications:
- UL Listed || IEC || CSA
- Rohs Exemption Information:
- Yes
- Width:
- 1.5 in
- Product Or Component Type:
- miniature circuit-breaker
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Circuit Breaker Application:
- HACR rated
- Type Of Packing:
- bulk
- Circularity Profile:
- N/A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 2.95 in
- Halogen Content Performance:
- Halogen free product
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Type:
- standard
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Mounting Mode:
- unit mount
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
